Forged swivel

steel

Introduction

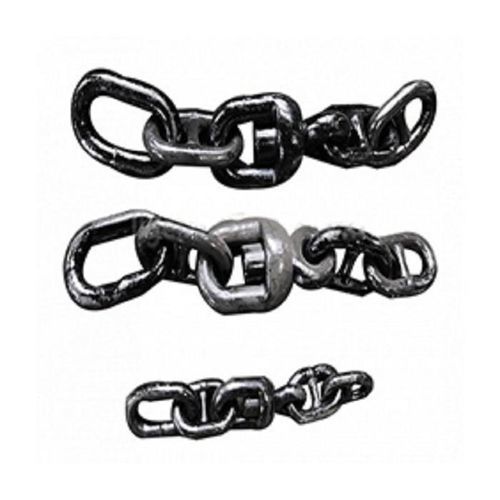

Marine anchor chain swivel group (E+SW+EL+C) Forerunner is a forged swivel assembly installed between an anchor and the anchor chain to reduce chain twisting and enable controlled rotation during anchoring operations. The assembly is closed-die forged from alloy steel, machined, heat treated, dimensionally calibrated and mechanically tested to meet marine service requirements.

Standard connection arrangement

• E = End Link (D-type end shackle connection)
• SW = Swivel
• EL = Enlarged Link
• C = Common Link (Kenter/joining link)

Design and function
The E+SW+EL+C configuration provides a direct connection between an anchor-side D-type end shackle and a Kenter joining shackle on the chain side while remaining compatible with standard stud link anchor chains and windlass equipment. The swivel permits rotation under load to mitigate torsional buildup and to maintain tensile load transfer through the anchoring system.

Product Features

• Closed-die forged alloy steel construction
• Standard connection form: E + SW + EL + C
• Reduces anchor chain twisting and torsion
• Compatible with stud link anchor chains and common windlass fittings
• Available for chain grades U2 and U3
• Suitable for nominal chain diameters from 12.5 mm to 162 mm
• Permanent identification marking and full traceability

Standards and manufacturing
Name: Marine Anchor Chain Swivel Group (E+SW+EL+C) Forerunner Piece
MOQ: 100 pieces
Packaging: Steel pallet, wooden crate, or bulk packing
Materials: CM490 or CM690 forged alloy steel
Manufacturing standards: ISO 1704; IACS UR W18 and A1; and applicable classification society rules (ABS, BV, CCS, DNV, LR, NK, KR, RINA, RS). All load-bearing components are closed-die forged, heat treated, precision machined and dimensionally calibrated to match the anchor chain grade.

Testing and inspection
Each swivel group is subject to chemical composition verification, forging inspection, heat treatment verification, dimensional inspection, proof load testing, tensile property verification, hardness testing, magnetic particle inspection (MPI), visual inspection, swivel rotation verification and final assembly inspection prior to shipment.

Application
Suitable for commercial vessels and offshore units including container ships, bulk carriers, oil tankers, LNG carriers, offshore support vessels, FPSOs, floating production units, naval vessels and permanent offshore moorings. Designed to improve anchor handling and reduce chain torsion during deployment and retrieval.

Maintenance
Inspect regularly for body deformation, bearing and pin wear, enlarged link wear, corrosion, cracks and identification marking legibility. Verify free swivel rotation without excessive clearance and ensure all connections remain secure. Replace assemblies that show wear or damage in accordance with classification society and shipboard inspection procedures.

Technical specifications

• Commercial name: Swivel Forerunner
• Brand: TOPONE CHAIN
• Construction: Closed-die forged, machined, heat treated alloy steel
• Material grades: CM490 or CM690 forged steel
• Standards: ISO 1704; IACS UR W18 and A1; classification societies ABS, BV, CCS, DNV, LR, NK, KR, RINA, RS
• Compatible chain grades: U2 and U3
• Nominal chain diameters: 12.5 mm to 162 mm
• Connection form: E + SW + EL + C (End Link + Swivel + Enlarged Link + Common Link)
• MOQ: 100 pieces
• Packing options: Steel pallet, wooden crate, bulk packing
• Typical applications: Container ships, bulk carriers, oil tankers, LNG carriers, offshore support vessels, FPSOs, floating production units, naval vessels, permanent offshore moorings
