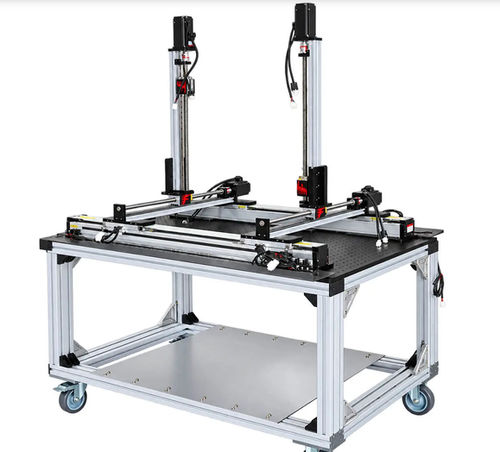

リニアポジショニングステージ FSK40IS-DV

XYZ軸電動式リニアモータ駆動

Short Description
This dual-gantry 3-axis test platform for university labs features X linear motor and Y/Z FsK40 ball screw modules. Zero-backlash scanning, rigid positioning and modular optical breadboard design support dual-probe comparative tests for material characterization, NDT and field mapping.

Key Features

• Dual-gantry 3-axis configuration
• X-axis: linear motor; Y/Z: FSK40 ball screw modules
• Zero-backlash scanning and rigid positioning
• Modular optical breadboard design for flexible test setups
• Supports dual-probe comparative testing for material characterization, nondestructive testing (NDT) and field mapping

Performance & Configuration
Custom stroke: X-axis 600 mm, Y-axis 500 mm, Z-axis 500 mm
Repeat positioning accuracy reported: ±0.02 mm

Series & Options

• Series: FSK40IS-DV
• Stroke Range: 50mm-1000mm
• Position Accuracy (spec listing): 0.03mm
• Max Speed: 255mm/s
• Max Load: 25kg
• Ball Screw options: G1204 / G1605 / G1610

Brand Overview (excerpt)
FUYU Technology specializes in industry-specific customization and manufactures intelligent linear motion systems including ball screw actuators, belt-driven modules, XYZ positioning stages, gantry systems, servo cylinders, linear rail guides, electric grippers and multi-axis motion controllers. The engineering team holds multiple patents and the factory is certified (ISO9001:2015, RoHS, CE, FCC, TUV).

Caractéristiques / spécifications techniques

• Configuration: Dual-gantry 3-axis test platform
• X-axis drive: Linear motor
• Y/Z drive: FSK40 ball screw modules
• Custom stroke examples: X 600 mm, Y 500 mm, Z 500 mm
• Stroke range (available): 50 mm – 1000 mm
• Repeat positioning accuracy (stated): ±0.02 mm
• Position accuracy (spec list): 0.03 mm
• Max speed: 255 mm/s
• Maximum load capacity: 25 kg
• Ball screw models: G1204, G1605, G1610
• Design features: Zero-backlash scanning, rigid positioning, modular optical breadboard to support dual-probe comparative tests
