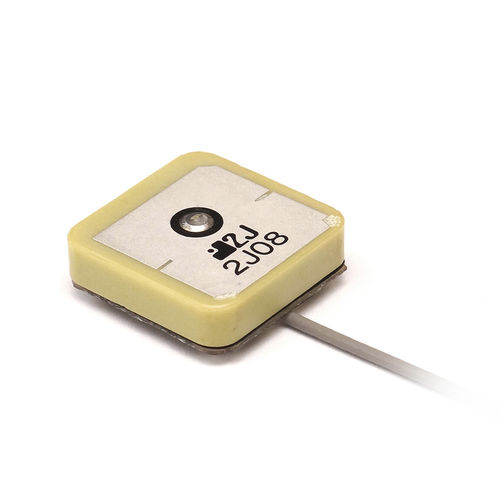

GPS antenna 2JM0301F
GALILEOinternalpassive

GPS antenna - 2JM0301F - 2J Antennas - GALILEO / internal / passive
GPS antenna - 2JM0301F - 2J Antennas - GALILEO / internal / passive
GPS antenna - 2JM0301F - 2J Antennas - GALILEO / internal / passive - image - 2
Add to favorites
Compare this product

Characteristics

Network
GPS, GALILEO
Type
internal
Other characteristics
passive, active, ceramic
Frequency

1,575.4 Hz

Gain

14 dB

Description

Mounting - Snap-in Mount Module Dimensions (mm) - 18 x 18 x 7.3 Operating temperature - -40 °C to +85 °C Standards - GPS/QZSS/Galileo Frequency - 1575.42 Passive Gain (dBi) - ~3.6 Impedance (Ohm) - 50 Voltage Range (V) - 1.5 - 3.6 Active Gain (dB) - 14 @ 2.7 V Noise Figure (dB) - 1.5 @ 2.7 V Current Consumption (mA) - 4 @ 2.7 V Power Consumption (mW) - 10.8 @ 2.7 V Saw Filter Type - Pre-Filter Out of Band Rejection (dB) - 43 ESD Protection (kV) - 6
