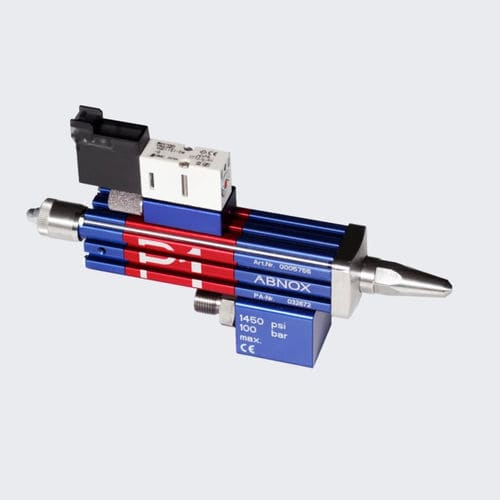

Piston valve AXDV-P1
pneumatically-operateddosingcompact

piston valve
piston valve
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
pneumatically-operated
Function
dosing
Body
compact
Applications
abrasive
Number of channels
4/2
Associated function
switching
Other characteristics
compact, high-performance
Pressure

Max.: 100 bar (1,450.4 psi)

Min.: 0 bar (0 psi)

Description

Dosing of lubricants precise, fast and contactless! The ABNOX Metering Impulse Valve in the P1 series with a compact design is an extremely fast-switching pneumatically controlled high-performance valve for the contactless dosing of medium to high-viscosity and abrasive lubricants. The Impulse Valve is electrically triggered via an integrated 4/2 directional control valve. The short distances in the entire air supply system and the fast responding magnetic valve allow up to 100 cycles of operation per second. The alternating supply of air to the working piston opens and closes the nozzle needle. When the control air supply is shut off or fails, a spring closes the nozzle needle. Benefit from the following advantages: • Efficient contact-free metering of lubricants • Flexible use thanks to the interchangeable nozzle and valve pin • Wide dosing spectrum from the tiniest of squirts to jet-forming dosages • Exact metering processes • High accuracy dosing • High dosing speed with perfectly coordinated dosing volumes • Adjustable dosing volume • Compact design for easy integration into any production equipment • The lightweight device is ideally suited for high movement speeds
