Automatic packaging machine BP 450AD

continuous-motionblistersyringe

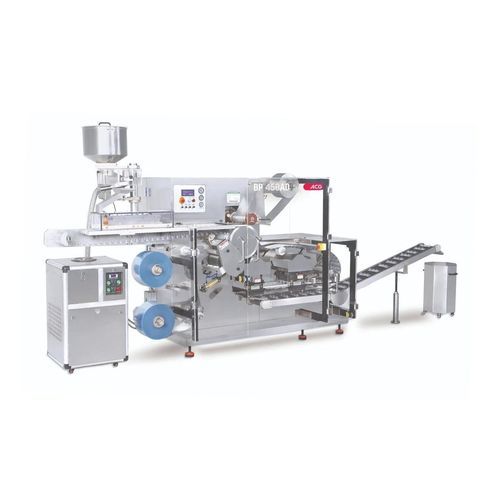

About the BP 450AD
A deep-cavity blister packaging machine engineered for pharmaceutical production of ampoules, vials, pre-filled syringes and tubes. The BP 450AD combines vacuum thermoforming with single-drum continuous-motion technology to provide stable feeding, accurate forming and simplified operation suitable for regulated medical environments.

Applications

• Blister packaging of ampoules and vials
• Blister packaging of pre-filled syringes and combination packs (syringes + ampoules)
• Blister packaging of tubes and solid dosage products requiring deep cavities

Features & Benefits

• Single drum for forming and sealing — Improved blister quality and fewer format parts to manage
• Forming depth up to 28 mm — Enables reliable feeding and production of deep-cavity blisters
• Print Registration and Control (PRC) enabled — Ensures correct print positioning and supports traceability
• Easy-fit punch-tool assembly — Faster, safer and more efficient format changeovers

Technical specifications

• Output — Up to 4.5 m/min (Thermoforming)
• Forming depth — Up to 28 mm (Thermoforming)
• Maximum blister size — 200 mm x 100 mm
• Forming materials — PVC, PVC/PVdC, Triplex (PVC/PE/PVdC)
• Lidding materials — Push-through foil, child-resistant foil, peelable (paper)
