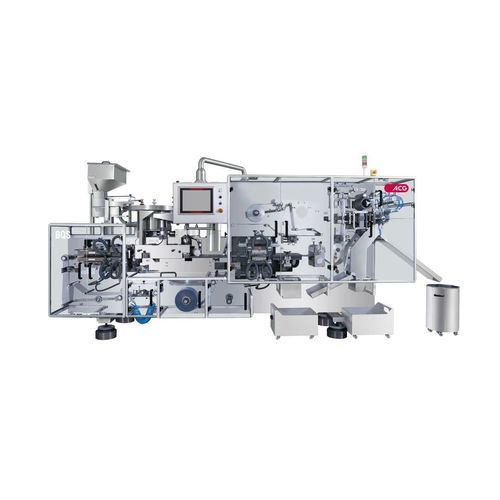

Automatic packaging machine BQS

continuous-motionrotatingblister

About the BQS
BQS is a continuous-motion flat forming and flat sealing blister packaging machine designed for mid-scale pharmaceutical production. It supports both thermoforming and cold-form processes and is servo-driven for precise motion control. The machine is configurable to customer requirements, integrates easily with downstream cartoning equipment and includes CE / EAC / UL certification. BQS is equipped with ACG SMART CONNECTED for remote asset visibility and real-time monitoring of machine health and performance.

Applications

• Blister packaging of solid oral dosage forms for mid-scale production

Key features & benefits

• Ergonomic balcony design — Easy access for cleaning and tool changeover
• Handles a wide range of thermoform films and cold-form packaging foils — Greater material flexibility
• Optimal forming area (240 mm x 180 mm) — Suitable for a variety of blister sizes
• Edge-to-edge blister punching — Improves packaging yield
• Effortless downstream integration with cartoning machines — Enables combined blister-cartoning lines
• Rotary indexing suitable for large blister sizes — Blister width up to 127 mm

Technical specifications

• Forming cycle — Thermoforming: Up to 45 cycles/min; Cold-forming: Up to 35 cycles/min
• Forming depth — Thermoforming: Up to 12 mm; Cold-forming: Up to 9 mm
• Maximum forming area — 240 mm x 180 mm
• Forming materials — PVC, PVC/PVdC, Aclar, Triplex (PVC/PE/PVdC), cold-form foil (Alu)
• Lidding materials — Push-through foil, child-resistant foil, peelable foil
• Blister width capability — Up to 127 mm
• Drive & control — Servo-driven for improved accuracy, reliability and control
• Connectivity — ACG SMART CONNECTED for remote asset visibility and real-time monitoring
• Certifications — CE, EAC, UL
• Installations — More than 1,000 active installations worldwide
