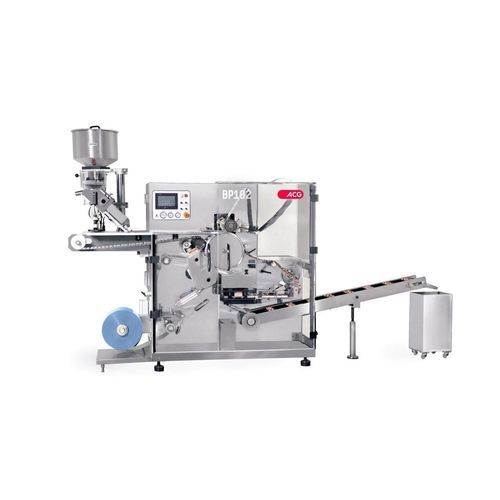

Automatic packaging machine BP 102

blistercompacttablet

About the BP 102
The BP 102 is a compact blister packaging machine for thermoforming and sealing solid-dose pharmaceutical products. It integrates single-drum forming and sealing technology and is available in single- or twin-station configurations, enabling flexible production in limited-space environments. The machine accepts common thermoforming materials and a range of lid foils suitable for push-through and peelable formats.

Applications

• Blister packaging of solid-dose products for small- to mid-scale pharmaceutical production

Features & Benefits

• Single-drum forming and sealing — reduces number of format parts and improves blister uniformity
• Single- and twin-station configurations — adapts to different production speeds and blister formats
• Compact footprint — suitable for installations with limited floor space
• Easy-fit punch-tool assembly — faster and more reliable changeovers

Technical specification

• Output: Up to 4.5 m/min (thermoforming)
• Forming depth: Up to 12 mm (thermoforming)
• Maximum blister size: 200 mm x 100 mm
• Forming materials: PVC; PVC/PVdC; Triplex (PVC/PE/PVdC)
• Lidding materials: Push-through foil; child-resistant foil; peelable (paper)
