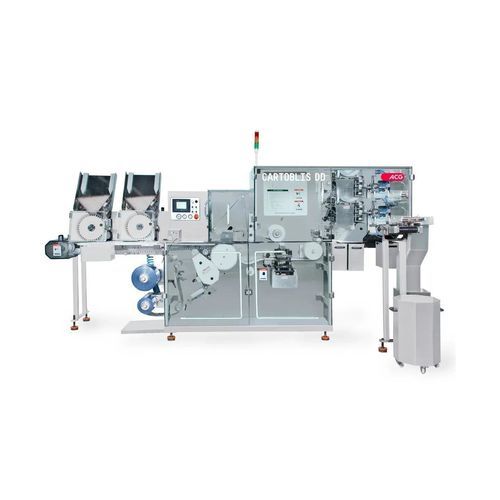

Automatic packaging machine CARTOBLIS DD

blistertabletsyringe

About the CARTOBLIS DD
The CARTOBLIS DD is a cost-effective deep-draw blister-packaging machine designed for seamless inline integration with cartoners. Based on unique single-drum vacuum thermoforming technology and advanced automation, it provides flexible format handling for tablets, capsules and small parenteral containers.

Applications

• Blister packaging of solid oral dosage forms (tablets and capsules)
• Blister packing of vials, ampoules and syringes

Features & Benefits

• Feature: Deep-draw forming up to 28 mm
  Benefit: Enables packaging of ampoules, vials and syringes in addition to tablets and capsules
• Feature: Vacuum rotary thermoforming with single-drum technology
  Benefit: Consistent blister quality while using fewer format parts
• Feature: Fast punching and blister pickup
  Benefit: High throughput with improved blister integrity
• Feature: Edge-to-edge punching
  Benefit: Minimizes foil waste in the web travel direction
• Feature: Integration capability with online cartoners
  Benefit: Provides continuous feed to cartoning machines for fully automated blister-to-carton operations

Technical specifications

• Output: Up to 4.5 m/min (thermoforming)
• Forming depth: Up to 28 mm (thermoforming)
• Format area: 200 mm x 100 mm
• Forming materials: PVC, PVC/PVdC, Triplex (PVC/PE/PVdC)
• Lidding materials: Push-through foil, child-resistant foil, peelable (paper)
