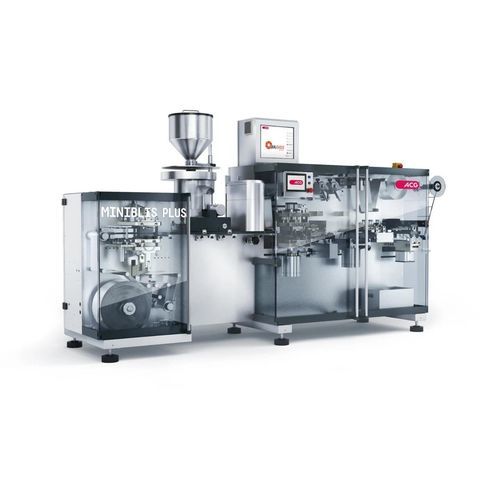

Automatic packaging machine MINIBLIS PLUS

blistercompacttablet

About the MINIBLIS PLUS
The ACG MINIBLIS PLUS is a versatile intermittent-motion flat-forming and flat-sealing blister packaging machine designed for short runs, pilot production and R&D. It handles sensitive solid-dosage products and supports both thermoform films and cold-form foils.

Applications

• Blister packaging of solid dosage pharmaceutical products for small-scale production, clinical batches and R&D

Key features and benefits

• Large feeding area — supports multi-product and multi-feed operations
• Nitrogen-purging capability — enables controlled environment for moisture-sensitive and hygroscopic products
• Thermoform and cold-form capability — adaptable to a wide range of blister formats and R&D setups
• Compact footprint — optimized output per square metre for laboratory and pilot lines
• Low power consumption — reduced total cost of ownership for small-batch production
• Interactive HMI and IPC — intuitive operator control and process monitoring
• Integration-ready — designed for straightforward integration with cartoning and downstream packaging machines

Technical specifications

• Forming cycle — Thermoforming: Up to 25 cycles/min; Cold-forming: Up to 20 cycles/min
• Forming depth — Thermoforming: Up to 12 mm; Cold-forming: Up to 9 mm
• Maximum forming area — 156 mm x 96 mm
• Forming materials — PVC; PVC/PVdC; Triplex (PVC/PE/PVdC); cold-form foil (Alu); Aclar (with plug assist)
• Lidding materials — Push-through foil; child-resistant foil; peelable (paper)
