Automatic packaging machine BQS E

continuous-motionblistertablet

About the BQS E

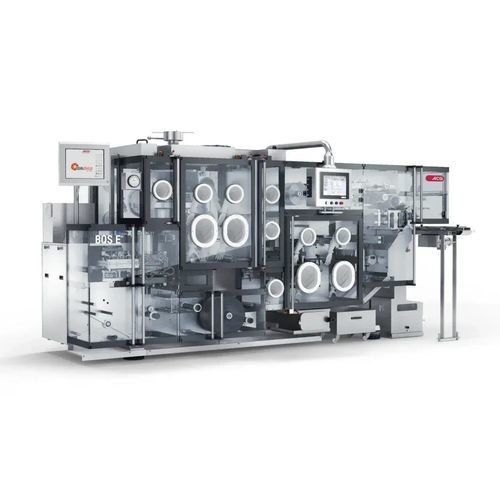

The ACG BQS E is a platen-sealing, continuous-motion blister packaging machine with an enclosure option (E) designed to provide a controlled packaging environment for solid dosage forms.

Overview
BQS E handles thermoform films and cold-form foils. Servo-driven motion provides precise forming and sealing control. The machine supports synchronization and downstream integration with cartoners for a continuous primary-to-secondary packaging line.

Applications

• Blister packaging of solid oral dosage products (tablets, capsules)

Features & Benefits

• Full enclosure from forming to sealing, operating under negative pressure — Reduces particle load in the working area
• Rigid polycarbonate guarding with built-in glove ports — Allows safe operator intervention while maintaining containment
• Interlocks on all doors — Improves operator safety
• Compatible with a wide range of thermoform films and cold-form foils — Increases material flexibility
• Differential pressure gauge for filter and machine — Enables better in-process monitoring
• Designed for straightforward downstream integration with cartoners — Facilitates continuous blister-to-carton lines

Technical specifications

• Model: BQS E
• Machine type: Platen-sealing, continuous-motion blister packaging machine, servo-driven
• Forming cycle — Thermoforming: up to 45 cycles/min; Cold-forming: up to 35 cycles/min
• Forming depth — Thermoforming: up to 12 mm; Cold-forming: up to 9 mm
• Maximum forming area — 240 mm × 180 mm
• Forming materials — PVC, PVC/PVdC, Aclar, Triplex (PVC/PE/PVdC), cold-form foil (Alu)
• Lidding materials — Push-through foil, child-resistant foil, peelable foil
• Safety & containment — Complete enclosure, polycarbonate guarding, glove ports, door interlocks, negative-pressure operation
• Process control — Differential pressure gauge for filter and machine
• Integration — Prepared for synchronization and integration with cartoners for primary-to-secondary packaging
