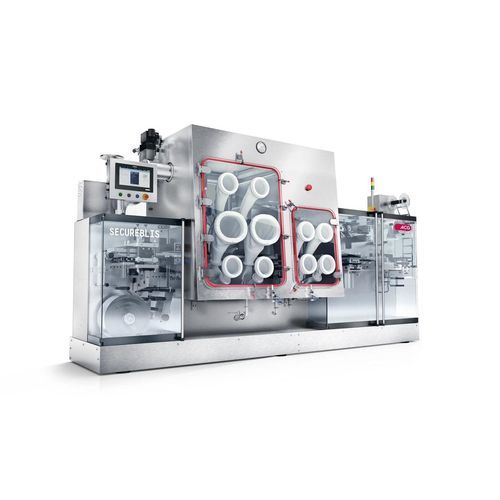

Automatic packaging machine SECUREBLIS MINI

blistertabletfor the pharmaceutical industry

About the SECUREBLIS MINI
Containment solution for drug products classified as highly potent active pharmaceutical ingredients (HPAPI). SECUREBLIS MINI is engineered to meet Operational Exposure Band (OEB) 3 requirements and to protect operators during blister packaging of solid dosage forms.

Applications

• Blister packaging of solid dosage products containing HPAPIs

Features & Benefits

• Feeding and sealing enclosure area operates under negative pressure — Ensures OEB 3 compliance for products containing HPAPIs
• Glove ports at multiple locations — Allow safe manual interventions without breaching containment
• HEPA filters — Maintain a clean working environment and prevent product cross-contamination
• Automated wet-in-place (WIP) system with strategically placed nozzles — Settles drug particles within the blister area and covers dead zones; simplifies and secures cleaning and changeover
• Additional safety interlocks across the machine — Ensure operation only under contained conditions
• Easy integration with product loading systems — Enables contained loading of tablets or capsules, improving operator safety

Technical specifications

• Forming cycle: Thermoforming — Up to 25 cycles/min; Cold-forming — Up to 20 cycles/min
• Forming depth: Thermoforming — Up to 12 mm; Cold-forming — Up to 9 mm
• Maximum forming area: 156 mm x 96 mm
• Forming materials: PVC; PVC/PVdC; Triplex (PVC/PE/PVdC); cold-form foil (aluminium-based)
• Lidding materials: Push-through foil; child-resistant foil; peelable (paper)
