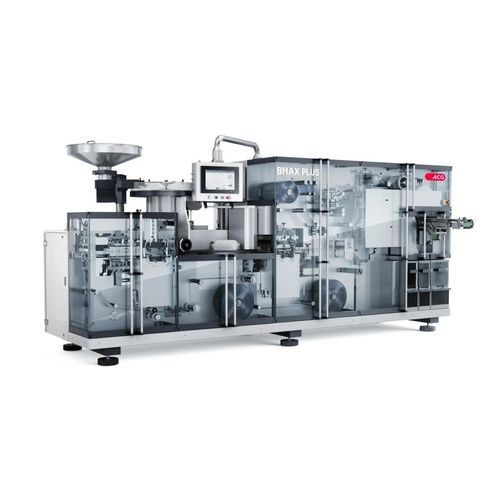

Automatic packaging machine BMAX PLUS

continuous-motionrotatingblister

About the BMAX PLUS
Drawing on ACG's experience in packaging high-quality blister packs in more than 6,000 thermoform and cold-form formats, BMAX PLUS is a versatile flat-forming and flat-sealing blister packaging machine driven by the latest servo technology. It improves accuracy, speed, reliability and control. It handles thermoforming and cold-forming packaging films and foils and is compliant with 21 CFR Part 11.

Applications

• Blister packaging of solid dosage forms (tablets, capsules) for mid-scale production.

Key features and benefits (feature — benefit)
Servo-enabled continuous-motion flat-forming and flat-sealing — Higher-quality thermoform and cold-form blisters
Balcony-style access with upgraded setting mechanisms — Easier operation, faster changeover and simplified cleaning
Robust mono-block construction — Smoother, reliable operation
Centralised Automated Lubrication System (CALS) — Timely lubrication and protection of critical moving parts
Automated pressure settings — Prevents unauthorised changes and reduces manual intervention; ensures output quality and operator safety
Edge-to-edge blister-pack punching — Improved packaging yield
Rotary pick-up system — Increased throughput

Additional product information
- Designed to handle thermoforming and cold-forming films and foils
- Compliant with regulatory requirement 21 CFR Part 11

Technical features / specifications

• Forming cycle (thermoforming): Up to 50 cycles/min
• Forming cycle (cold-forming): Up to 45 cycles/min
• Forming depth (thermoforming): Up to 12 mm
• Forming depth (cold-forming): Up to 9 mm
• Maximum forming area: 240 mm x 180 mm
• Forming materials: PVC, PVC/PVdC, Aclar, Triplex (PVC/PE/PVdC), cold-form foil (Alu)
• Lidding materials: Push-through foil, child-resistant foil, peelable (paper)
• Centralised Automated Lubrication System (CALS) for critical moving parts
• Automated pressure settings to prevent unauthorised changes
• Edge-to-edge blister-pack punching capability
• Rotary pick-up system for improved throughput
