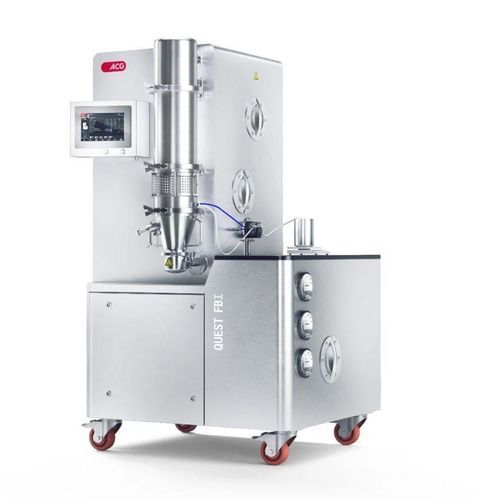

Fluidized bed granulator QUEST FB I

wetfor laboratoryfor pharmaceutical applications

About the QUEST FB I
The QUEST FB I is a laboratory-scale fluid-bed (FBC) system designed for safe, precise pharmaceutical feasibility studies. It integrates top-spray granulation and Wurster coating capabilities on a compact mobile platform. The unit features a certified 12-bar pressure shock-resistant design and a proprietary Schlick dual-purpose spray nozzle compatible with both top-spray and Wurster processes. Footprint approximately 1 m x 1.2 m, optimised for laboratory environments.

Applications

• Drying
• Wurster coating (pellet coating)
• Top-spray granulation
• Hot-melt granulation

Features & Benefits

• MOST™ concept with a certified 12-bar pressure shock-resistant, non-vented, fully contained design ensuring operator and environmental safety.
• Proprietary Schlick dual-purpose nozzle for both top-spray granulation and Wurster pellet coating, eliminating the need for nozzle changes.
• Heating system with face and bypass mechanism for rapid and accurate process-temperature control.
• Expansion chamber with 360° sight glass for continuous visual monitoring of fluidisation.
• Integrated peristaltic pump controlled via HMI for precise spray-rate management.
• Mobile trolley platform with approx. 1 m x 1.2 m footprint for laboratory space efficiency.

Technical specifications (summary)
Process modes: Top-spray granulation | Wurster coating
Working volume* (dependent on bulk density): Top-spray granulation — Min 0.6 L, Max 3 L; Wurster coating — Min 0.3 L, Max 1.5 L

Technical specifications

• Certified 12-bar pressure shock-resistant construction (MOST™ concept).
• Proprietary Schlick dual-purpose spray nozzle (top-spray and Wurster).
• Heating system with face and bypass mechanism.
• Expansion chamber with 360° sight glass.
• Integrated peristaltic pump with HMI control.
• Laboratory-scale configuration on a mobile trolley; footprint approx. 1 m x 1.2 m.
• Working volumes: Top-spray 0.6–3 L; Wurster coating 0.3–1.5 L (dependent on bulk density).
