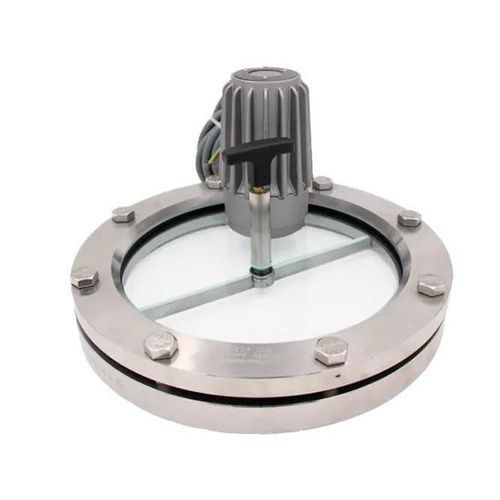

Monitoring sight glass Type 318

for vesselsfor chemicalsATEX

Circular sight glass fitting Type 318 is a flat, lightweight sight glass welded onto or into a container wall to allow observation or illumination of the container interior. It is positioned as a cost-effective, chemically resistant solution between pressureless fittings and more robust pressurized variants.

Features

• Flat, lightweight design derived from DIN 28120 principles but optimized for lower operating pressures.
• Housing and flanges in stainless steel 1.4571 (316Ti) for improved corrosion resistance.
• Glass clamped between two stainless steel flanges with proven high-quality flat seals.
• Standard sight glass material: borosilicate glass to DIN 7080 (or per customer specification).
• Optional FEP or Halar® coatings available to increase chemical resistance of the glass assembly.
• Suitable for observation or illumination of container interiors; compatible with liquid and gaseous media.

Options

• Sight glass wiper SGW with PTFE or silicone wiper blade.
• LED lighting systems for Ex and non-Ex areas.
• Spraying device SVIII.
• FEP or Halar® coating for additional chemical protection.
• Mica protection disc for added thermal and steam protection.
• Special constructions and custom designs on request.

Dimensions (per DN)

• DN 50 — Da: 150 mm; Di: 80 mm; h1: 12 mm; h2: 24 mm; Weight: 3.6 kg
• DN 80 — Da: 175 mm; Di: 100 mm; h1: 14 mm; h2: 24 mm; Weight: 5.0 kg
• DN 100 — Da: 200 mm; Di: 125 mm; h1: 14 mm; h2: 24 mm; Weight: 5.9 kg
• DN 125 — Da: 220 mm; Di: 150 mm; h1: 16 mm; h2: 24 mm; Weight: 7.1 kg
• DN 150 — Da: 250 mm; Di: 175 mm; h1: 16 mm; h2: 24 mm; Weight: 8.8 kg
• DN 200 — Da: 300 mm; Di: 225 mm; h1: 16 mm; h2: 24 mm; Weight: 11.3 kg
• DN 300 — Da: 400 mm; Di: 305 mm; h1: 20 mm; h2: 24 mm; Weight: 21.7 kg
• DN 400 — Da: 500 mm; Di: 390 mm; h1: 22 mm; h2: 24 mm; Weight: 35.0 kg

Technical specifications

• Denomination: Type 318
• Design standard: based on DIN 28120 (adapted: flatter and lighter)
• Material (housing / flanges): stainless steel 1.4571 (316Ti)
• Sight glass: borosilicate glass DIN 7080 (standard) or per customer specification
• Nominal sizes: DN 50, 80, 100, 125, 150, 200, 300, 400
• Nominal pressure: PN 2.5 (operating pressure up to 2.5 barg)
• Temperature capability: configurable options up to high temperatures; mica protection recommended where borosilicate limits are exceeded (configurations available up to approx. 400 °C depending on materials and protection)
• Sealing: flat seals from a wide range (>50) of materials including fiber-reinforced seals, PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400 and other branded seals
• Coatings: FEP or Halar® coating options for enhanced chemical resistance
• Media: suitable for liquid and gaseous media
• Accessories / upgrades: optional wiper (SGW), LED lights, spraying device SVIII, mica protection disc; custom designs possible
• Certificates: TÜV / ISO 9001 and stainless material certification available
