Sight glass for industrial applications Type 337
for vesselslevel indicatormonitoring

Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring
Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring
Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring - image - 2
Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring - image - 3
Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring - image - 4
Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring - image - 5
Sight glass for industrial applications - Type 337 - ACI Industriearmaturen GmbH - for vessels / level indicator / monitoring - image - 6
Add to favorites
Compare this product

Characteristics

Specifications
for industrial applications, for vessels, level indicator, monitoring, for chemicals, stainless steel, borosilicate glass, weld-on
Temperature

Min.: 80 °C
(176 °F)

Max.: 400 °C
(752 °F)

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 25 bar
(363 psi)

Description

Overview

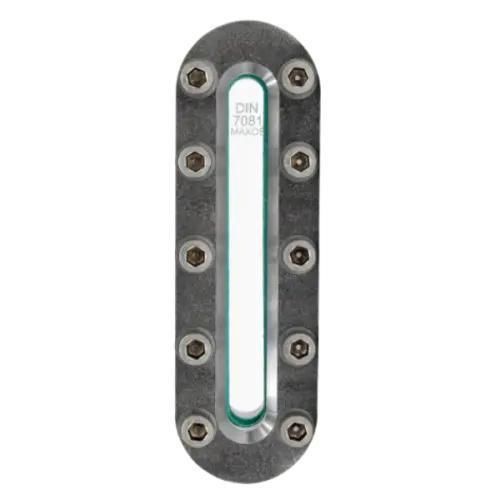

  • The Type 337 longitudinal sight glass fitting is a rectangular inline viewing window with rounded ends, designed to be welded in or on container walls for reliable observation of liquid levels in closed vessels such as boilers, tanks and silos. It is built for high-pressure and elevated-temperature service and can be tailored to process requirements.


Key features

  • Sight glass plate: borosilicate glass to DIN 7081 (or per customer requirement).
  • Standard body material: stainless steel 1.4571 (316Ti); alternative materials available on request.
  • Rated for working pressures up to 25 barg (PN 25).
  • Suitable for liquid and gaseous media; available in multiple total lengths (BL 176–536 mm).
  • Glass plate clamped between seals and fastened for permanent tightness and pressure resistance.


Optical variants & protective measures

  • Reflex sight glass (prism structure) recommended for poorly lit vessels to improve level recognition.
  • Transparent sight glass recommended when undistorted view or color visibility of the medium is required.
  • Mica protection discs, FEP or Halar® coatings available to protect the glass against high temperature or aggressive chemicals; reflex glass cannot be combined with mica or coatings, transparent glass can.


Product media & resources

  • Product video: Tank sight glass type 337 (YouTube).
  • Info brochure (PDF) and downloadable drawing/STP files available for detailed product and manufacturing data.


Technical specifications

  • Nominal pressure: PN 25.
  • Working pressure: max. 25 barg.
  • Temperature options: 80°C; 130°C; 150°C; 175°C; 180°C; 200°C; 243°C; 280°C; 300°C; 320°C; 400°C (high-temperature versions available).
  • Standard materials: body stainless steel 1.4571 (316Ti); sight glass borosilicate to DIN 7081 (other glass types on request).
  • Gasket/sealing: flat seals from a broad range (>50) of materials including PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400 and other branded materials.
  • Options: FEP protective coating/screen; mica protection; high-temperature version; near dead-space-free version; custom designs.


Lengths & weights

  • Total length (BL) — slit length (SL) and weight:
    • BL 176 mm → SL 124 mm, Weight 3.3 kg
    • BL 226 mm → SL 174 mm, Weight 4.3 kg
    • BL 256 mm → SL 204 mm, Weight 4.9 kg
    • BL 316 mm → SL 264 mm, Weight 6.0 kg
    • BL 376 mm → SL 324 mm, Weight 7.1 kg
    • BL 436 mm → SL 384 mm, Weight 8.3 kg
    • BL 496 mm → SL 444 mm, Weight 9.4 kg
    • BL 536 mm → SL 484 mm, Weight 10.2 kg
  • Typical delivered total length range: 176–536 mm.


Applications & accessories

  • Used for level indication and visual monitoring of liquid and gaseous media in closed containers (boilers, tanks, silos).
  • Accessories: protective screens/coatings, mica discs and other accessories available to adapt the fitting to the process environment.
