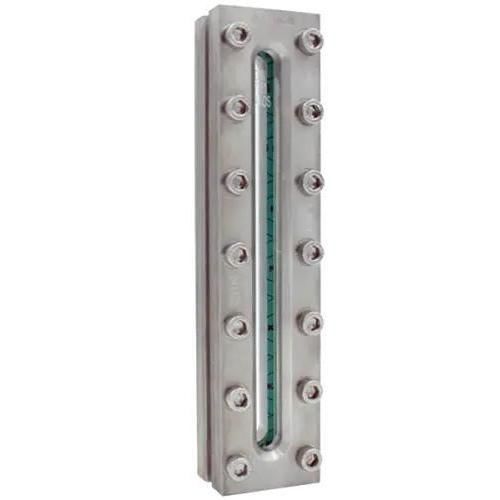

Vessel sight glass Type 330

weld-onmonitoringlevel indicator

Product overview
The ACI Type 330 longitudinal sight glass fitting is a rectangular vertical level indicator for reliable observation of liquid levels in closed containers (boilers, tanks, silos). It can be welded into the container wall or welded on and is designed for high pressure and temperature applications.

Materials & optical options

• Sight glass plate made of borosilicate glass to DIN 7081 (or comparable)
• Standard body material: stainless steel 1.4571 (316Ti); other materials available on request
• Sealing: flat gaskets selectable from a wide range (>50 sealing materials) including fiber gaskets, PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400 and other branded materials
• Protective measures: mica protection disc for high temperature/steam protection; FEP or Halar® coating to protect the glass from aggressive chemicals or alkaline solutions
• Optical types: transparent sight glass for clear/colored media; reflex sight glass (DIN 7081 or comparable) for poorly lit containers — note: reflex glasses cannot be combined with mica discs or coatings

Available options

• FEP or Halar® coating
• Mica protection disc
• High temperature version
• Nearly dead space-free version
• Special constructions / custom designs

Dimensions and weights (selection)

• BL 140 mm: SL 79 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 2.8 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 3.4 kg
• BL 170 mm: SL 124 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 3.2 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 4.0 kg
• BL 220 mm: SL 174 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 4.0 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 5.0 kg
• BL 250 mm: SL 204 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 4.6 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 5.7 kg
• BL 300 mm: SL 264 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 5.3 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 6.6 kg
• BL 310 mm: SL 264 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 5.6 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 6.9 kg
• BL 350 mm: SL 304 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 6.3 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 7.8 kg
• BL 370 mm: SL 324 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 6.6 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 8.2 kg
• BL 400 mm: SL 354 mm; Concealed view 0; h1/h2 (PN16) 20 mm; Weight (PN16) 7.1 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 8.8 kg
• BL 500 mm: SL 454 mm; Concealed view 1x46; h1/h2 (PN16) 20 mm; Weight (PN16) 9.1 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 11.3 kg
• BL 600 mm: SL 564 mm; Concealed view 1x36; h1/h2 (PN16) 20 mm; Weight (PN16) 10.7 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 13.3 kg
• BL 620 mm: SL 564 mm; Concealed view 1x46; h1/h2 (PN16) 20 mm; Weight (PN16) 11.1 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 13.8 kg
• BL 700 mm: SL 654 mm; Concealed view 1x46; h1/h2 (PN16) 20 mm; Weight (PN16) 12.5 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 15.6 kg
• BL 740 mm: SL 694 mm; Concealed view 1x46; h1/h2 (PN16) 20 mm; Weight (PN16) 13.2 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 16.4 kg
• BL 800 mm: SL 754 mm; Concealed view 1x46; h1/h2 (PN16) 20 mm; Weight (PN16) 14.2 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 17.7 kg
• BL 930 mm: SL 884 mm; Concealed view 2x46; h1/h2 (PN16) 20 mm; Weight (PN16) 16.7 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 20.8 kg
• BL 1000 mm: SL 954 mm; Concealed view 3x46; h1/h2 (PN16) 20 mm; Weight (PN16) 18.2 kg; h1/h2 (PN40) 25 mm; Weight (PN40) 22.6 kg

Key performance

• Maximum working pressure: up to 40 barg
• Heat resistant versions available up to 400 °C (depending on glass type and options)
• Suitable for liquid and gaseous media
• Total length range: 140 - 1000 mm (various BL options)
• Custom manufacturing and special constructions possible

Caractéristiques / spécifications techniques

• Model / series: Type 330
• Standard material: Stainless steel 1.4571 (316Ti); other materials on request
• Standard glass: Borosilicate glass according to DIN 7081 (or comparable)
• Nominal pressure (PN) options: PN 16, PN 40
• Temperature options (examples): 80°C, 130°C, 150°C, 175°C, 180°C, 200°C, 243°C, 280°C, 300°C, 320°C, 400°C
• Face-to-face length (BL) options: 140, 170, 220, 250, 300, 310, 350, 370, 400, 500, 600, 620, 700, 740, 800, 930, 1000 mm
• Options: FEP/Halar coatings, mica protection disc, high temperature version, nearly dead space-free version, special constructions
• Accessories available (e.g. protective screens/coatings)
