Vessel sight glass Type 322A

for chemicalsATEXfor explosive atmospheres

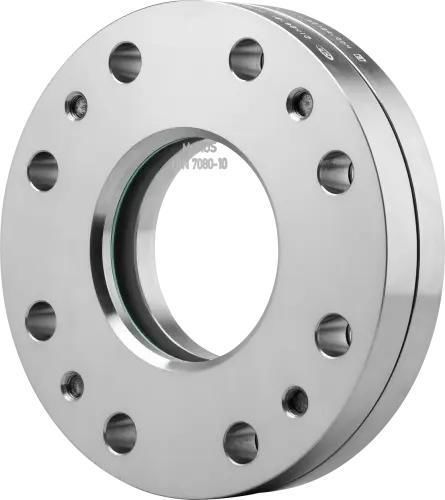

The Circular sight glass fitting Type 322A is a reinforced, flange-mounted sight glass for high-pressure vessel applications designed according to the construction principles of DIN 28121 and suitable for carrier flanges per ASME B16.5. It is built to allow high working pressures and elevated-temperature executions with appropriate gaskets and glass materials.

Structure

• Cover flange
• Glass cushion
• Sight glass (borosilicate similar to DIN 7080)
• Gasket
• Base flange
• Screws (tensioning performed via tension screws)

Options

• LED light (for Ex and non-Ex areas)
• Spraying device SVII (not possible for Type 322A at high working pressure)
• FEP or Halar® coating for chemical resistance
• Mica protection disc (for additional protection against temperature and steam)
• Special constructions / custom designs

Accessories (examples)

• Round mica discs (protection against chemical influences or steam)
• LED lights in different designs

Specifications / technical data

• Model / commercial denomination: Type 322A
• Standards / mounting: Flange mounting to DIN 28121; suitable for carrier flanges according to ASME B16.5
• Nominal sizes (NPS): 1 ½", 2", 3", 4"
• Diameters (Di [mm] per NPS): 1 ½" = 40 mm; 2" = 50 mm; 3" = 80 mm; 4" = 100 mm; other sizes on request
• Pressure rating classes available: 150 lbs, 300 lbs, 400 lbs, 600 lbs, 900 lbs, 1500 lbs
• Maximum working pressure: up to 250 barg (depending on configuration)
• Temperature ratings: selectable executions; heat resistant up to 300 °C depending on materials and gaskets
• Media: suitable for liquid and gaseous media
• Glass: borosilicate glass plates (dimensions beyond DIN 7080 possible); alternative protection by mica disc
• Sealing / tensioning: tension screws secure the glass; fitting must be fixed to carrier flange for sealing
• Functional limitations: wipers and some spraying devices cannot be used at high working pressures for Type 322A
• Coatings: FEP or Halar® available for chemical resistance
• Design & supply: custom-made designs and special constructions possible; accessories available
