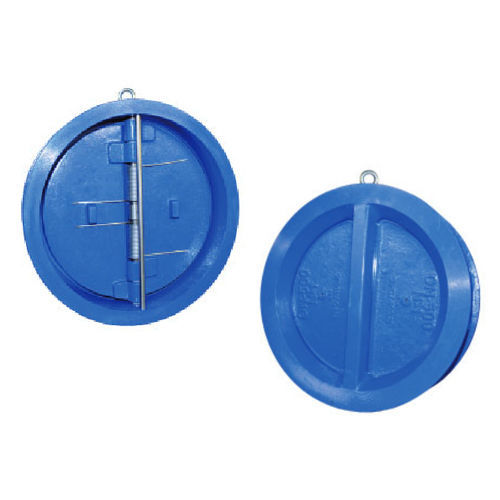

Dual plate check valve k05i-580-583-584for waterwafercast iron
Add to favorites
Compare this product
Characteristics
- Type
- dual plate
- Fluid
- for water
- Body
- wafer
- Material
- carbon steel, stainless steel, cast iron, ductile iron
- Other characteristics
- spring
- DN
Max.: 1,400 mm
(55.118 in)Min.: 40 mm
(1.575 in)- Pressure
10 bar, 16 bar, 25 bar
(145 psi, 232.1 psi, 362.6 psi)
Description
STANDARDS OF MANUFACTURE
EN 1074-3 CHECK VALVES
EN 558 S16 FACE TO FACE
MATERIALS
BODY
EN GJL-250 CAST IRON EN 1561
EN GJS-400-15 DUCTILE IRON EN 1563
A216 WCB CARBON STEEL ASTM A216
AISI316 STAINLESS STEEL EN 10088-3
DISC
EN GJS-400-15 DUCTILE IRON EN 1563
A216 WCB CARBON STEEL ASTM A216
AISI316 STAINLESS STEEL EN 10088-3
BRONZE-ALUMINUM
STEM
AISI304 STAINLESS STEEL EN 10088-1
SPRING
AISI302 STAINLESS STEEL EN 10088-1
SEAT
BUNA-N (OPT. EPDM – VITON)
CORROSION PROTECTION
COATED INSIDE-OUTSIDE
(FBE) EPOXY 250 MICRONS
CERTIFIATES
D.M. NR.174 – HEALTH DEPARTMENT (I)
TESTING
EN 12266-1 (ISO 5208) PRESSURE TESTS
GRADE “A”
