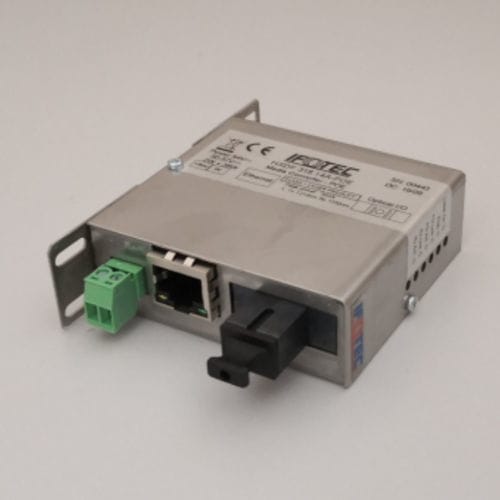

Media converter IB2050

powervideoEthernet

PoE media converter (PSE) Transmission over 1 multi-mode or single-mode optical fiber by the same module Transmission over 2 multi-mode or single-mode optical fiber by the same module RJ45 connection by a straight-through or crossover cable (auto-negotiation) Baud rate 10/100 Mbit/s auto-negotiated Supports Half and Full-duplex modes Can be integrated at the foot of the mast PoE+ IEEE 802.3at PoE+ power supply (≤ 35W) Supply voltage 54VDC for the module and the PoE function DIN rail mounting (optional) Place of production and after-sales service: France Product warranty: 3 years This media converter module is used to convert 10/100Base-T Ethernet to 100Base-BX for transmission on 1 optical fiber and to 100Base-FX on 2 optical fibers, while also able to power the unit connected by the cable. In compliance with the PoE+ (Power over Ethernet) IEEE 802.3at standard, it features the PSE (Power Sourcing Equipment) function and can supply up to 35W power to PD (Powered Device) peripheral devices via the Ethernet cable. This product is perfectly suited to the following applications: Remote control of IP cameras or IP video encoders Lan MAN Industrial network Ethernet network extension, etc. The operating indicators ensure safe usage. It is available in an individual box and can be integrated at the base of a camera mast as part of, for example, a video surveillance application with transmission over an IP network. A DIN rail mounting kit can be provided on request. Function Ethernet Media Converter 10/100Base-T to Fiber 100Base-FX (2-fiber) or 100Base-BX (1-fiber) Complies with 802.3 standards
