Mechanical leak tester ATS3
pneumaticfor packagingheat sealing strength

mechanical leak tester
mechanical leak tester
mechanical leak tester
mechanical leak tester
mechanical leak tester
mechanical leak tester
mechanical leak tester
mechanical leak tester
Add to favorites
Compare this product


Characteristics

Type
mechanical, pneumatic
Applications
for packaging, heat sealing strength
Other characteristics
compact, tabletop, single-head, economical, single-station

Description

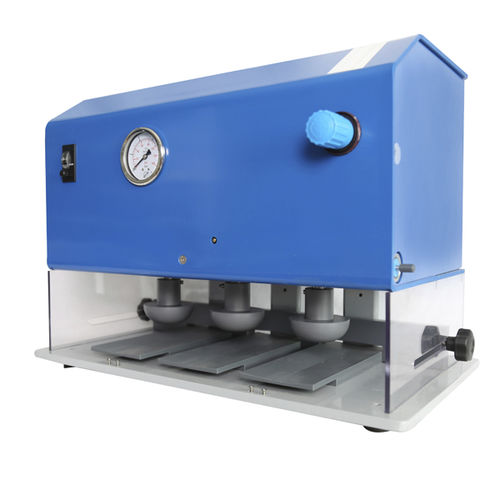

The ATS 3-Head Tube Sealer Tester is the tool for checking the strength of the welds of plastic and metalloplastic tubes directly at the edge of the production line or in the laboratory, if you want high throughput. The system integrates the pneumatic actuator, a cylinder, the tool, an anvil, the force adjustment being done by limiting the pressure in the cylinder, for each compression head. In addition, you can test several different types of product simultaneously by adjusting the inlet pressure in the cylinder for each. An abac of correspondence between pressure and force is supplied with the machine (maximum force 1000 N.) The system has an adjustable timer to select the test time of up to 30 seconds for each head. Housing made of PVC on a metal frame ensuring rigidity. Removable receptacle in transparent PMMA. Supplied with two anvils of different size depending on the size of the tube. Safety door preventing the cylinder from lowering to the safety position. Door locked during the test. Connection to compressed air relaxed to 6 bars by means of a rilsan connection diameter 8 mm. Ease of use • Fully pneumatic • Transparent receptacle cleanable in case of bursting of the tube. There is a 6-head ATS model to increase the number of simultaneous checks. Specific vertical fabrications, made up of weight sensors are also possible on request.
