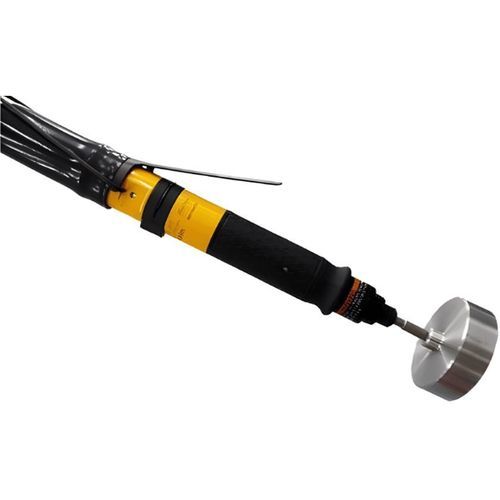

Pneumatic capping machine

in-linestand-alonesemi-automatic

Overview
Portable semi-automatic capping tool for small to medium batch production. Provides adjustable torque and consistent cap tightening. Can be supplied as a standalone hand unit or mounted on a retractable tether with balancer and coil for integration with semi-automatic fillers.

Key features

• Flexible production: suited to small and medium batch runs requiring semi-automatic capping.
• Consistent results: maintains repeatable tightening for product quality control.
• Adjustable torque: application torque is quickly adjustable to match different cap types and requirements.
• Safe operation: tool activates only when positive downward pressure is applied to the capping head.
• Compact and versatile: suitable for bench-top use or for mounting on a balancer with retractable coil for in-line ergonomic operation.
• Serviceable design: built for maintainability and integration in production environments.

Technical specifications

• Typical product output: Up to 20 per minute
• Torque range (standard): 1.5 - 10 Nm
• Torque range (heavy duty option): 3.5 - 12 Nm
• Length: 246 mm
• Compressed air working pressure: 6 bar (0.6 MPa)
• Cap diameter range: 20 - 80 mm

Operation & supply options

• Activation method: only activates with positive downward pressure on the capping head (safety feature)
• Supply options: standalone portable unit or mounted on retractable tether with balancer and coil for semi-automatic fillers
• Typical uses: bench-top operations or ergonomic mounting at filling lines
