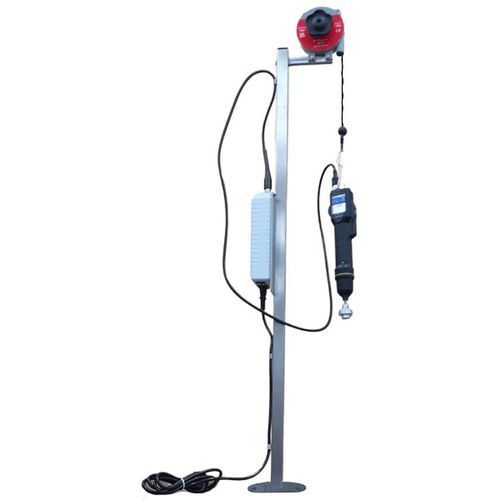

Screw-on capping machine

electricelectronically controlledsemi-automatic

Product overview
Compact semi-automatic bench-mounted capping station for precise screw-cap application, suited to laboratories, pilot plants and small-batch production. Electronic torque control and a balancer-mounted torque driver provide repeatable tightening and ergonomic operation.

Product details

• Accurate, Fast & Repeatable Screw Capping
  The bench-mounted unit delivers controlled, repeatable tightening of screw caps to a defined torque. Designed for low-to-medium-volume production, it ensures consistent seal quality while maintaining operator control and flexibility.
• Torque Control by Adjustable Slip Clutch
  An electronically driven torque system ensures accurate cap tightening and tamper-evident integrity. Torque is set mechanically via interchangeable slip-clutch springs to configure different torque ranges.
• Interchangeable Torque Ranges by Changing Spring
  The station supports multiple torque ranges by exchanging the slip-clutch spring:
  • 0.4–1.6 Nm
  • 1–3 Nm
  Fine adjustment within each range allows precise torque setting to match specific cap and container combinations.
• Integrated Balancer to Support Tool Weight
  The torque driver is suspended on a bench-mounted balancer, enabling easy positioning, reduced operator fatigue and smooth handling; activation is via a trigger for intuitive use.
• Compact, Bench-Mounted Footprint
  Designed for direct fixation to a workbench, the compact support frame is suited to laboratories, pilot facilities, contract packers and small manufacturing lines where space is limited.
• Flexible Cap Compatibility
  Interchangeable torque heads accommodate different screw-cap styles and sizes for fast changeovers in multi-product environments.

Technical specifications
Typical Product Output — Up to 16 per min
Machine Height — 1100 mm
Machine Width — 140 mm
Machine Depth — 220 mm
Standard Electrical Supply — 100 to 240VAC 50/60Hz
Typical Power Consumption — 60 watts
Torque Operating Ranges — 0.4–1.6 Nm; 1–3 Nm

Service & Maintenance
Low-maintenance, workshop-friendly design. Simple mechanical and electronic layout allows easy cleaning and routine inspection. Robust components and straightforward adjustment mechanisms support long-term reliability in laboratory and production environments.

Features / Technical characteristics

• Typical Product Output: Up to 16 per minute
• Machine dimensions (H x W x D): 1100 mm x 140 mm x 220 mm
• Electrical supply: 100–240 VAC, 50/60 Hz
• Power consumption: approx. 60 W
• Torque ranges: 0.4–1.6 Nm and 1–3 Nm (interchangeable slip-clutch springs)
• Interchangeable torque heads for multiple cap styles and sizes
• Balancer-mounted suspended torque driver with trigger activation
• Bench-mounted, compact footprint suitable for labs and small-batch production
