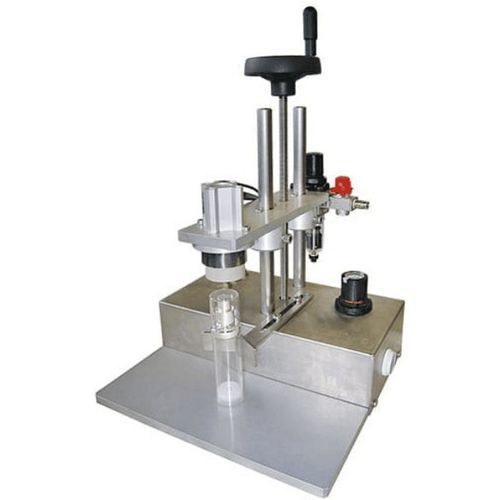

Press-on capping machine pneumaticsemi-automaticfor the pharmaceutical industry
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic, press-on
- Operating mode
- semi-automatic
- Application field
- for the food industry, for the beverage industry, for the pharmaceutical industry, for the cosmetics industry, laboratory
- Other characteristics
- tabletop
- Throughput
Min.: 6 p/min
Max.: 10 p/min
Description
Product overview
Key features
Operation
Notes
Technical specifications
- Quick, efficient and adaptable bench-top pneumatic capping press for precise, repeatable pressing of press-on lids and caps onto containers. Powered by compressed air to deliver consistent capping force with minimal operator effort; suitable for pharmaceutical, cosmetic, food and laboratory production environments.
Key features
- Typical output: approximately 6–10 containers per minute (≈360–600 containers/hour), depending on container size, cap type and operator workflow.
- Container accommodation: documented diameter ranges 20–90 mm and 22–85 mm; capped heights variously reported up to 240 mm, 265 mm and a technical table listing a maximum bottle height of 320 mm.
- Press stop height adjusted manually using a handle and locking system; press force precisely controlled via an integrated pressure regulator.
- Adjustable bottle locator ensures accurate centring of the container beneath the press pad.
- Interchangeable press pads support quick changeovers; shaped or bespoke press pads can be manufactured for non-standard cap designs.
- Bench-top construction in stainless steel and anodised aluminium for hygienic operation and ease of cleaning.
Operation
- Operates using compressed air which powers the press mechanism to apply consistent pressure with minimal manual effort, ensuring repeatable, uniform results and reduced operator fatigue.
- Two-button safety start requires both buttons to be pressed simultaneously, keeping operator hands clear of the press pad during operation.
Notes
- Capping force is controlled by an integrated pressure regulator. Custom press pads are available to accommodate non-standard cap designs.
Technical specifications
- Machine weight: 15 kg
- Maximum bottle height: 320 mm
- Overall dimensions: 350 x 350 x 700 mm
- Capping force: Up to 40 kg (≈400 N)
- Container diameters (documented ranges): 20–90 mm and 22–85 mm
- Reported capped height limits in text: up to 240 mm, up to 265 mm and 320 mm (technical table)
- Typical output: approximately 6–10 containers/minute (≈360–600 containers/hour)
- Construction materials: stainless steel and anodised aluminium
- Controls & safety: manual height adjustment with handle and locking system; integrated pressure regulator; two-button safety start
VIDEO
