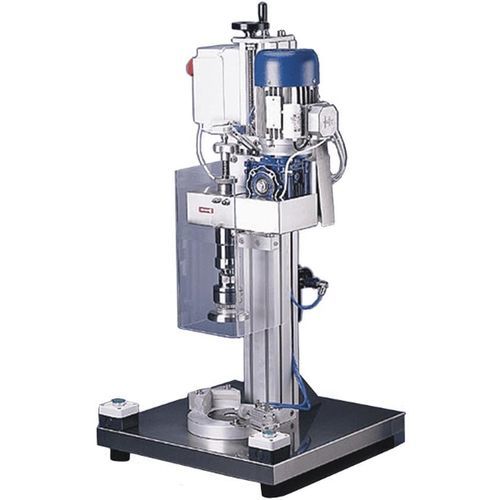

Screw-on screw capping machine

magneticsemi-automaticfor the pharmaceutical industry

Product overview

• Quick, efficient and adaptable benchtop screw capping machine providing precision torque control for consistent tightening of screw caps on bottles, jars and containers.
• Semi-automatic benchtop design with anti-rotation bottle clamp for secure holding and repeatable capping cycles.
• Adjustable torque via hysteresis / magnetic clutch from 0.2 Nm to 2 Nm to prevent under- or over-tightening; suitable for pharmaceutical, cosmetic, food and regulated production environments.
• Compact, hygienic construction in stainless steel and aluminium alloy for easy cleaning and long service life.
• Simple, operator-focused controls: hand-wheel height adjustment and straightforward setup for small to medium batch production.
• Integrated safety features: guards, emergency stop, electrical isolator and safety start controls.

Cap tooling options

• Custom cap tooling with top pressure disc manufactured to suit individual cap profiles.
• Tooling designed to engage cap splines for positive drive.
• Three-jaw gripping head with interchangeable rubber jaws to cover a range of cap diameters.

Service & maintenance

• Designed for clean, low-maintenance operation: robust mechanical design, easy-to-clean materials and simple routine inspection. Pneumatic system and hysteresis head provide consistent performance with minimal upkeep.

Technical specifications (table)
Typical Product Output — Up to 500 per hour
Machine Height — 1000 mm
Machine Width — 500 mm
Machine Depth — 500 mm
Machine Weight — 40 Kg
Standard Electrical Supply — 230 VAC 50 Hz Single Phase
Typical Power Consumption — 250 Watts
Compressed Air Supply Pressure — 6 Bar (Max 10 Bar)
Compressed Air Working Pressure — 5 Bar
Compressed Air Consumption — 3 L free air per cycle


Features / Technical specifications

• Throughput: up to 500 containers per hour (operator and bottle size dependent)
• Torque control: adjustable 0.2 Nm – 2 Nm via hysteresis / magnetic clutch
• Materials: stainless steel and aluminium alloy construction
• Dimensions (HxWxD): 1000 mm x 500 mm x 500 mm
• Weight: 40 Kg
• Electrical supply: 230 VAC, 50 Hz, single phase
• Power consumption: 250 Watts
• Compressed air: supply 6 Bar (max 10 Bar); working pressure 5 Bar; consumption ~3 L free air per cycle
• Features: anti-rotation bottle clamp, hand-wheel height adjustment, interchangeable cap tooling, full safety guards and emergency stop/isolation
• Designed for regulated environments (pharmaceutical, cosmetic, food) and for easy cleaning/inspection
