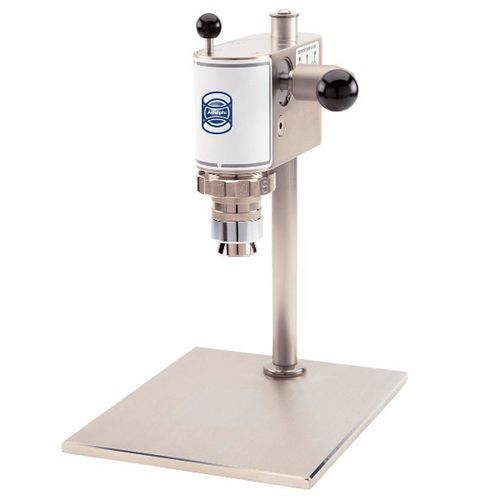

Manual crimping tool

for medical applicationswith interchangeable dies

Overview
High-precision manual vial crimping and de-capping tool for secure pharmaceutical closures, delivering reliable and repeatable results for laboratories and small-batch production. Designed for precise, repeatable sealing of aluminium vial crimps in laboratory and pharmaceutical environments, supporting vial integrity, sterility and tamper evidence in regulated applications.

Key features

• Manual crimping for pharmaceutical vials — Precise, repeatable sealing of aluminium vial crimps suitable for GMP and sterile workflows.
• Interchangeable crimping & de-capping heads — Separate, swappable heads for crimping and for de-capping to configure the tool for different seal sizes and functions.
• Compatible with major vial seal types — Supports plain aluminium seals and flip-off / flip tear-off seals (plastic insert must be removed before de-capping with the appropriate head).
• Common pharmaceutical vial sizes — Suitable for 13 mm, 18 mm and 20 mm vial seals; 32 mm sealing handled by a separate machine.
• Professional, consistent crimp quality — Precision-engineered jaws and controlled closing action deliver tight, uniform crimps without damaging vial or seal.
• Integrated de-capping capability — With the appropriate head fitted, the tool can remove aluminium crimps, enabling flexible laboratory workflows.
• Adjustable stops for repeatability — Built-in adjustable stops control closing force to prevent over- or under-crimping across repeated operations.
• Simple, intuitive operation — Fully manual design requiring no installation or power; fast setup for pilot runs and small-batch production.
• Ergonomic, height-adjustable design — Height adjustment for comfortable operation during extended use and to promote consistent handling with reduced operator fatigue.

Applications
Laboratories, pharmaceutical, biotech, diagnostics, veterinary applications and small-batch sterile production where controlled, repeatable vial sealing and occasional de-capping are required.

Technical specifications

• Machine height: 457 mm
• Machine width: 254 mm
• Machine length: 305 mm
• Machine weight: 9.5 kg
• Seal compatibility: plain aluminium, flip-off, flip tear-off (plastic insert removal required for some types)
• Supported seal sizes: 13 mm, 18 mm, 20 mm (32 mm not supported)
• Interchangeable crimping and de-capping heads
• Adjustable stops for repeatability
• Operation: manual, no power required
• Materials: hygienic, corrosion-resistant materials suitable for cleanroom/laboratory use
