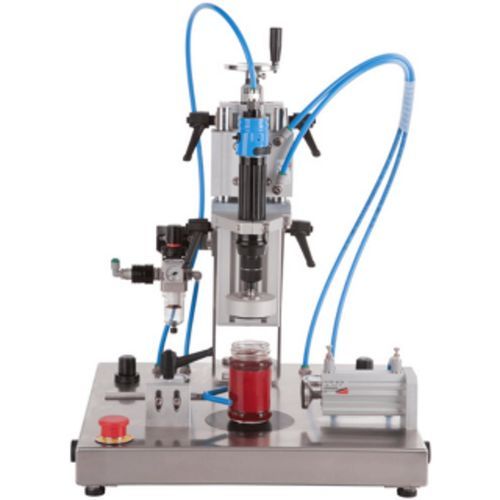

Screw screw capping machine

pneumaticsemi-automaticportable

Overview
Quick, precise pneumatic screw capping machine for bottles and jars. Bench-top format with adjustable mechanical torque control for repeatable twist-off/screw cap tightening in small to medium production runs. Suitable for hygienic environments in food, pharmaceutical, cosmetic and chemical industries.

Product details

• Fast & Reliable Twist-Off Capping
  Designed for efficient, repeatable application of twist-off and screw caps on bottles and containers. Provides consistent sealing performance for small to medium-scale production runs.
• Torque Control by Adjustable Slip Clutch
  Torque applied via an adjustable mechanical friction slip clutch to tighten caps consistently without overtightening or damaging caps or containers.
• Pneumatic Container Clamping
  Containers are securely held by a pneumatically operated clamp during the capping cycle to ensure stability and accurate torque application.
• Compact, Portable & Robust Design
  Bench-top format constructed from stainless steel and aluminium alloy for hygiene, durability and low maintenance.
• Adaptable for Different Products
  Interchangeable cap chucks support multiple twist-off/screw cap sizes and formats; tool-free changeovers allow fast adaptation between sizes.

Service & Maintenance
Robust mechanical and pneumatic design provides easy access for cleaning and routine inspection. High-quality materials support hygienic operation and long service life in regulated production environments.

Technical specifications (table)
Typical Product Output: Up to 500 per hour
Machine Height: 700 mm
Machine Width: 500 mm
Machine Length: 500 mm
Machine Weight: 15 kg
Compressed Air Supply Pressure: 6 Bar (10 Bar maximum)
Compressed Air Working Pressure: 6 Bar
Compressed Air Consumption: 15–20 L/min (free air)
ATEX Zone Qualification: NOT QUALIFIED
Maximum Bottle Height: 320 mm
Cap Type: Screw Cap

Features / technical specifications

• Typical output: Up to 500 containers per hour (dependent on operator speed and workflow)
• Overall dimensions (H×W×L): 700 mm × 500 mm × 500 mm
• Weight: 15 kg
• Compressed air supply pressure: 6 Bar (10 Bar maximum)
• Compressed air working pressure: 6 Bar
• Compressed air consumption: 15–20 L/min (free air)
• Maximum bottle height capacity: 320 mm
• Cap compatibility: Twist-off / screw caps (interchangeable cap chucks)
• Torque control: Adjustable mechanical friction slip clutch; torque range 0.3 Nm to 4 Nm
• Changeover: Tool-free cap chuck changeovers for different cap diameters
• Construction: Stainless steel and aluminium alloy for hygienic, durable bench-top use
• ATEX: Not qualified for ATEX zones
