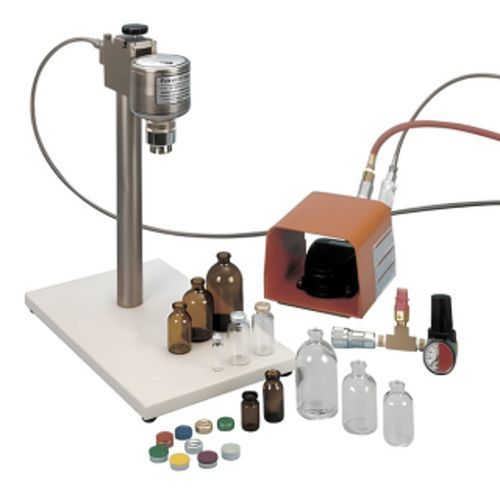

Aluminium crimping machine

sealmanualpneumatic

Overview
High-precision pneumatic crimping and de-capping system for aluminium vial seals (13, 18 and 20 mm). Designed for consistent pharmaceutical sealing in GMP-regulated laboratories and small-scale production, the unit reduces operator effort and supports repeatable workflows.

Product details

• Powered crimping for pharmaceutical vials
  Pneumatically operated system delivering consistent, repeatable crimps of aluminium vial seals. Eliminates manual force and reduces operator fatigue during extended use.
• Compatible with industry-standard vial closures
  Works with plain aluminium seals and with flip-off or tear-off types (plastic insert must be removed for de-capping when applicable).
• Common pharmaceutical seal sizes
  Supports 13 mm, 18 mm and 20 mm aluminium crimp seals, covering the most widely used sterile vial formats in pharma, biotech, diagnostics and veterinary applications.
• Interchangeable crimping and de-capping heads
  Each head is made for a specific seal size/type to ensure correct geometry and reliable sealing.
  • Tool-free head change in approximately 30 seconds
  • Dedicated de-capping heads available for controlled removal of aluminium crimps
• Precision crimping with adjustable force
  Crimping force is set via a compressed-air regulator (typically wall-mounted) to allow precise adjustment for secure, reproducible crimps without damaging vial or seal.
• Flexible operation modes
  Configurable for different workflows:
  • Handheld use with trigger start
  • Bench-mounted use on an optional support stand
  Optional stand and foot pedal enable hands-free operation for improved control and higher throughput.
• Designed for regulated environments
  Corrosion-resistant materials and controlled pneumatic operation make the unit suitable for GMP-compliant labs, cleanrooms and small-scale pharmaceutical production.

Service & maintenance
Low-maintenance, workshop-friendly design with simple mechanical and electronic layout for easy cleaning and routine inspection. Robust components and straightforward adjustment mechanisms support long-term reliability in laboratory and production settings.

Technical specifications

• Typical product output: Up to 20 per min
• Machine height (on stand): 420 mm
• Stand width: 230 mm
• Stand depth: 370 mm
• Machine weight: 9.85 kg
• Compressed air supply pressure: 5 to 7 Bar
• Compressed air working pressure: 1 Bar to 3.5 Bar
• Compressed air consumption: 0.5 litres of free air per cycle
• Crimp repeatability: Controlled by air pressure
• Cap type: Plain, flip-off, tear-off seals
• Crimp jaw material: Plated hardened steel
• Seal diameter range: 13 mm, 18 mm and 20 mm
