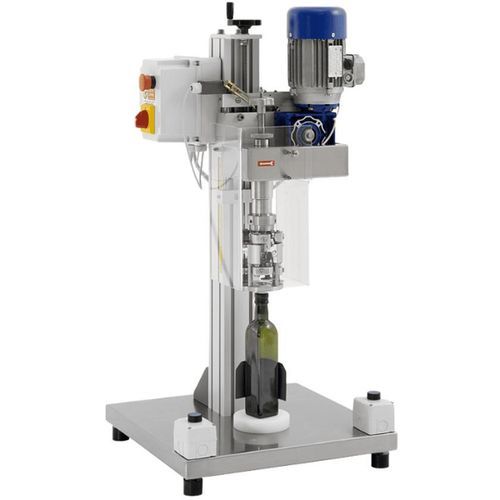

Roll-on sealing capping machine

electronically controlledsemi-automaticfor the pharmaceutical industry

Overview
Bench-top ROPP capping machine designed for precise, tamper-evident sealing of aluminium Roll-On Pilfer Proof (ROPP) caps. Adjustable for a wide range of bottle heights and cap diameters. Stainless steel and aluminium construction for hygienic operation. Full safety controls; optional high-force variant available.

Product details

• Professional Roll-On Pilfer Proof capping Specifically engineered to form cap threads and tamper-evident bands on aluminium ROPP caps, ensuring consistent, repeatable seals across formats.
• Efficient bench-top operation Suitable for small to medium batch production with quick-change interchangeable capping heads for different cap sizes.
• Wide bottle and cap compatibility Fully adjustable to accommodate bottle heights 20–360 mm and diameters 5–200 mm, and cap diameters 15–50 mm.
• Durable, hygienic materials Constructed from stainless steel and aluminium alloy for easy cleaning and compliance with regulated production environments.
• Safety-focused design Includes electrical control panel, emergency stop, isolator, safety guard, bottle locator and two-hand start to prevent accidental activation.
• High-force option Available variant for applications requiring increased head loading pressure (e.g. specific crimping requirements).

Technical specifications (table)
Machine Height — 1000 mm
Machine Width — 500 mm
Machine Length — 500 mm
Machine Weight — 40 kg
Standard Electrical Supply — 230VAC 50Hz
Cap Type — Aluminium ROPP (Roll-On Pilfer Proof)
Material — Stainless steel and aluminium alloy construction
Bottle Height Range — 20 - 360 mm
Bottle Diameter Range — 5 - 200 mm
Cap Diameter Range — 15 - 50 mm
Max Head Loading Pressure — 60 KgF

Designed for regulated environments
Open yet guarded design allows easy access for cleaning and inspection while maintaining operator safety. Robust materials and mechanical simplicity provide reliable long-term operation with minimal maintenance in pharmaceutical, cosmetic, food and beverage production.

Characteristics / technical specifications

• Machine Height: 1000 mm
• Machine Width: 500 mm
• Machine Length: 500 mm
• Machine Weight: 40 kg
• Standard Electrical Supply: 230VAC 50Hz
• Cap Type: Aluminium ROPP (Roll-On Pilfer Proof)
• Material: Stainless steel and aluminium alloy construction
• Bottle Height Range: 20 - 360 mm
• Bottle Diameter Range: 5 - 200 mm
• Cap Diameter Range: 15 - 50 mm
• Max Head Loading Pressure: 60 KgF
