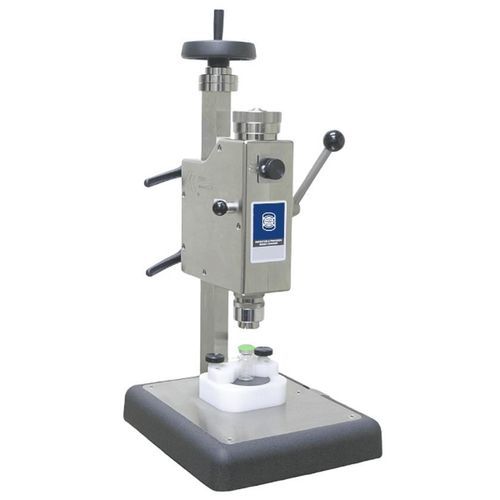

Manual crimping machine MK II

lever-operatedfor medical applications

Overview Professional manual vial crimping with integrated pre-crimp seal force for consistent, compliant closure quality. Fast setup, repeatable performance and operator-friendly control suitable for laboratory, pilot and small-batch pharmaceutical environments.

Key features

• Integrated Pre Crimp Seal Force
  • Ensures correct compression of stopper, aluminium crimp seal and vial prior to final crimp.
  • Delivers secure, repeatable, GMP-compliant seals.
  • Compression force and final crimp are applied using a single, smooth lever movement.
  • Interchangeable vial support parts provide precise compression for each vial size.
• Wide sealing range
  • Accepts 13 mm, 20 mm and 32 mm aluminium crimp seals via interchangeable crimp heads.
  • Compatible with plain seals, flip-top/flip-off seals and flip tear-off seals.
  • Accommodates different vial diameters by changing the vial support part.
• Dual adjustment setup for repeatability
  • Separate head height and crimp pressure adjustments.
  • Settings can be recorded for QC traceability to ensure repeatability across batches.
• Custom vial guide system
  • Dedicated vial positioning ensures accurate, consistent crimping every time.
  • Tool-free, quick changeovers for different vial formats.
• Operator-friendly performance
  • Comfortable, adjustable handle reduces operator fatigue.
  • Fast, intuitive setup — ready to use immediately.
  • Rapid format changeovers without complex tooling.
• Durable & hygienic construction
  • Manufactured from corrosion-resistant materials suitable for clean manufacturing and laboratory environments.
  • Safe for cleaning with ethanol or IPA-based solutions.

Applications

• Sterile filling processes
• Clinical trial and pilot-scale production
• Laboratory and R&D vial sealing
• Compounding pharmacy operations
• Small-batch pharmaceutical manufacturing
• Quality control and test batches

Technical specifications
Typical product output: Approx. 6–10 crimps per minute
Operation mechanism: Manual single-lever operation
Aluminium crimp seal sizes: 13 mm, 20 mm, 32 mm
Aluminium crimp seal types: Plain; Flip-top / Flip-off; Flip tear-off
Change parts available: Interchangeable crimp heads; De-capping heads; Spring-loaded vial supports

Characteristics / Technical specifications

• Typical output: Approx. 6–10 crimps per minute
• Operation: Manual single-lever actuation (pre-crimp + final crimp)
• Supported seal sizes: 13 mm, 20 mm, 32 mm (interchangeable heads)
• Supported seal types: Plain, flip-top/flip-off, flip tear-off
• Adjustments: Separate head height and crimp pressure (QC-recordable)
• Change parts: Interchangeable crimp heads, de-capping heads, spring-loaded vial supports
• Construction: Corrosion-resistant materials, cleaning compatible with ethanol/IPA
• Design: Ergonomic adjustable handle; tool-free format changeovers; dedicated vial guides for accurate positioning
