Network tester ARF812 series

wireless communication signaltransmission rateradiocommunication

Overview

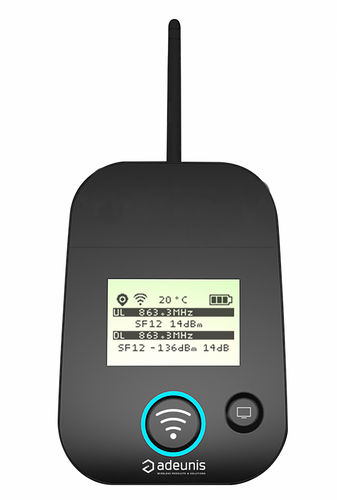

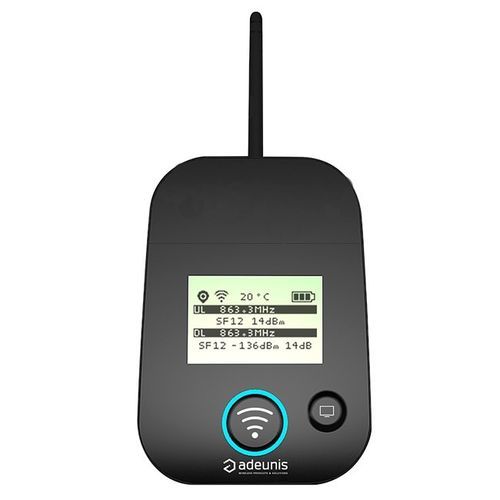

The Field Test Device (FTD) is a portable instrument to qualify and validate IoT radio coverage within a geographic area. Offered in LoRaWAN and Sigfox regional variants, it supports site assessment during project studies and on‑site validation of network presence at planned sensor locations.

Key points / Highlights

• Immediate display of coverage metrics: radio power, RSSI, SNR, PER, UL/DL channels.
• Geolocation of measurement points for mapping and reporting.
• Widely used and referenced by public network operators for field qualification.
• Suitable for radio‑mapping, coverage verification and pre‑deployment validation.

Versions and regions

• LoRaWAN: EU863‑870 / US902‑928 / AS923‑1.
• Sigfox: RC1 / RC4.

Variants / Part numbers

• ARF8123AA — FIELD TEST DEVICE LoRaWAN EU863‑870
• ARF8124A — FIELD TEST DEVICE LoRaWAN US902‑928
• ARF8124C — FIELD TEST DEVICE LoRaWAN AS923‑1
• ARF8121AA — FIELD TEST DEVICE Sigfox RC1
• ARF8122B — FIELD TEST DEVICE Sigfox RC4

Main features

• Displayed metrics: UL / DL, Channels, RSSI, SNR, PER, Temperature.
• Self‑powered and rechargeable for field use.
• Compact dimensions: 180 x 72 x 21 mm.
• Operating temperature: -20 °C to +40 °C.
• Radiated RF power: up to 23 dBm (varies by regional variant and regulatory limits).
• Sensitivity: -126 dBm (Sigfox); -140 dBm (LoRaWAN).

Certifications

• EU: Directive 2014/53/EU (RED).
• US: FCC — Title 47 CFR Part 15 (for US variants).
• Canada: RSS‑247 Issue 2 (for US/Canada variants).
• AS/NZS 4268 where applicable (AS923 / Sigfox RC4 regions).

Services & support

• Radio‑mapping and site coverage studies.
• Connectivity setup and device configuration services.
• Data decoding, device management and integration support.

Datasheets & documentation
Regional datasheets and technical documentation are available for LoRaWAN and Sigfox variants. Contact your supplier for PDF files and regional technical notes.
