Toroidal current sensor ARF819 series

DIN railAC4-20 mA

Product overview

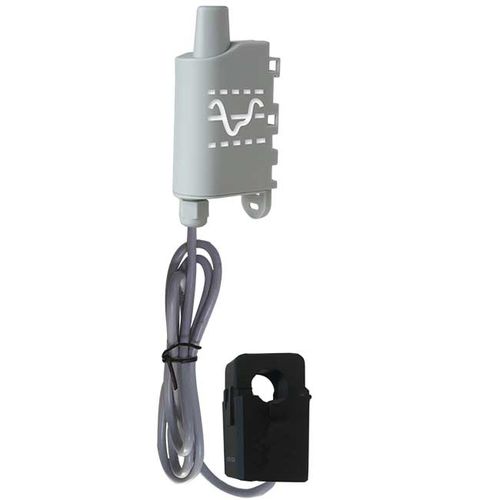

The CURRENT SENSOR is a ready-to-use LoRaWAN device combining the ANALOG transmitter and a current transducer (50 A, 100 A or 500 A) to measure AC current and report values over LPWAN for monitoring and analysis.

Highlights of the IoT sensor

• 2 analog inputs, independently configurable as 0-10 V or 4-20 mA
• 2 digital dry-contact inputs associated with the analog channels
• Data transmission: periodic and/or event-driven (LoRaWAN EU863-870)
• Battery-operated with replaceable 2600 mAh cell
• IP67 enclosure for outdoor/industrial use
• Compatible with Adeunis device management (KARE)

What the connected sensor does

• Monitor energy production and installations by measuring current
• Track and analyse consumption patterns for preventive maintenance and reporting

Alert / Alarm functions
AND/OR Trigger alarms when:

• configured high and/or low current thresholds are exceeded
• an event occurs on one of the 2 dry-contact inputs

Technical specifications

• 2 analog inputs configurable 0-10 V or 4-20 mA
• 2 digital dry-contact inputs linked to analog channels
• Local and remote configuration via network
• Data transmission modes: periodic and/or event-driven
• Alerts: product error, configuration error, low battery

General specifications

• Weight: 70 g (battery included)
• Dimensions: 105 x 50 x 27 mm
• Enclosure: IP67, EMERGE™ PC 8731HH grey resin (casing), EMERGE™ PC 8430-15 transparent resin (sole)
• Mounting: DIN rail, tube, wall, collar
• Power: replaceable battery, 2600 mAh
• Operating conditions (recommended): -25°C to +70°C (battery version); 0–85% RH non-condensing

Current transducer characteristics

• Operating temperature: -25°C to +60°C
• Fire resistance: UL94-V0
• Available versions: 50 A, 100 A, 500 A
• Accuracy: ±2%
• Approx. 70 cm cable length
• Cable diameter by version: 50 A = 10 mm; 100 A = 16 mm; 500 A = 36 mm

Additional technical specifications

• Minimum scan period: 30 seconds
• Data logging: up to 24 samples per frame
• Configurable life-frame and optional EPOCH 2013 time-stamping
• Network test on start-up (LED indication); customizable join phase (attempts, delays); remote join restart
• Data accessibility and redundancy features

Where the sensor operates
LoRaWAN EU863-870

Expected battery life (examples)
Conditions: 2 inputs active and configured as 0-10 V.
For 1 scan every 5 minutes and 1 transmission every 30 minutes:

• SF7: >15 years
• SF12: ≈5 years

For 1 scan every 10 minutes and 1 transmission every 60 minutes:

• SF7: >15 years
• SF12: ≈9.1 years

Certification
Directive 2014/53/EU (RED)

Product references

• ARF8190BA-B01 CURRENT SENSOR LoRaWAN® EU863-870 – 50A
• ARF8190BA-B02 CURRENT SENSOR LoRaWAN® EU863-870 – 100A
• ARF8190BA-B03 CURRENT SENSOR LoRaWAN® EU863-870 – 500A

Technical characteristics (extract)

• Product name: CURRENT SENSOR
• Brand: Adeunis
• Model composition: ANALOG transmitter + current transducer (50 A / 100 A / 500 A)
• Analog inputs: 2, configurable 0-10 V or 4-20 mA
• Digital inputs: 2 dry-contact inputs associated with analog inputs
• Transmission: periodic and/or event-driven (LoRaWAN EU863-870)
• Protection rating: IP67
• Battery: replaceable 2600 mAh
• Weight: 70 g; Dimensions: 105 x 50 x 27 mm
• Transducer operating temp: -25°C to +60°C; accuracy ±2%
• Mounting: DIN rail, tube, wall, collar
• Minimum scan period: 30 s; Data logging: up to 24 samples per frame
• Time-stamping: EPOCH 2013 (optional)
• Certifications: RED 2014/53/EU
