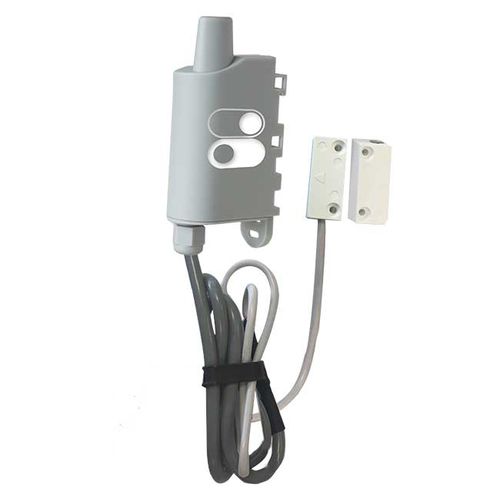

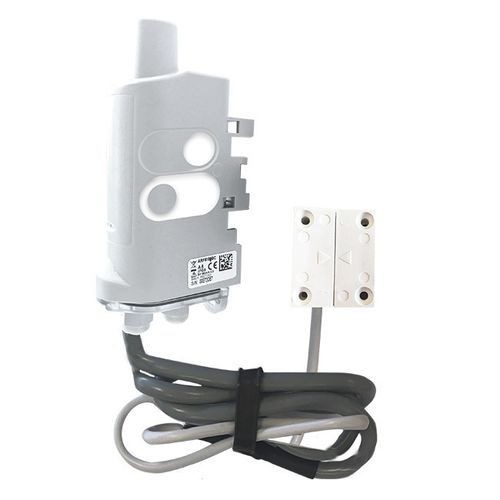

Wireless door opening detector ARF8170 series

magnet contact

Product overview
The CONTACT SENSOR is a ready-to-use product enabling to detect door opening. It is an assembly between a DRY CONTACTS transceiver and a proximity switch. Default settings have been established to simplify product installation by the user.

Highlights

• 4 configurable inputs/outputs
  • Control an output based on change in the state of an input
  • Remote and near-real-time control of output – LoRaWAN Class C
  • Track the time spent in a given state
• Over 15 years of autonomy (depending on version and configuration)
• Local and remote configuration
• Data transmission modes: periodic and/or event-triggered
• Compatible with KARE
• Available versions:
  • LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923-1
  • Sigfox: RC1 / RC2 / RC4

Functions / Actions

• Alert on events: report errors, level alerts
• Detect presence or activity
• Control access
• Detect intrusion
• Alert if an event exceeds a certain duration
• Count: number of events over a period; time spent in open or closed state

Proximity sensor

• Operating temperature range: -10°C to +85°C
• Dimensions: 14 x 38 x 8.7 mm
• About 1.20 m of cable
• Case: IP67
• Max operating distance between the two magnets: 15 mm

Available regional variants

• LoRaWAN: EU863-870, US902-928, AU915-928, AS923-1
• Sigfox: RC1, RC2, RC4

Documents

• Datasheet_CONTACT-SENSOR_LORA_868_R_en (Datasheet for LoRaWAN 868)
• Datasheet_ADEUNIS_CONTACT-SENSOR-SIGFOX-en (Datasheet for Sigfox RC1)
• Datasheet_CONTACT-SENSOR_AS-US-AU_RC2-4_en (Datasheet for AS/US/AU Sigfox/LoRa variants)

Technical specifications

• Four configurable digital inputs/outputs
• LoRaWAN Class C (with external power supply)
• Periodic and/or event-based transmission
• Configurable life cycle
• Product error, configuration error and low battery alerts
• Device operating temperature range: -25°C to +70°C
• Replaceable battery
• Integrated fastening system: DIN rail, tube, wall mount, collar
• Configuration: local via USB; remote via network (choice of transmission modes, periodicity, and interface type)
• Certifications: Directive 2014/53/UE (RED); US: FCC Title 47 CFR Part 15; Canada: RSS-247 Issue 2; AS/NZS 4268
• Proximity sensor specifics: operating temp -10°C to +85°C; dimensions 14 x 38 x 8.7 mm; approx. 1.20 m cable; IP67; max magnet distance 15 mm
