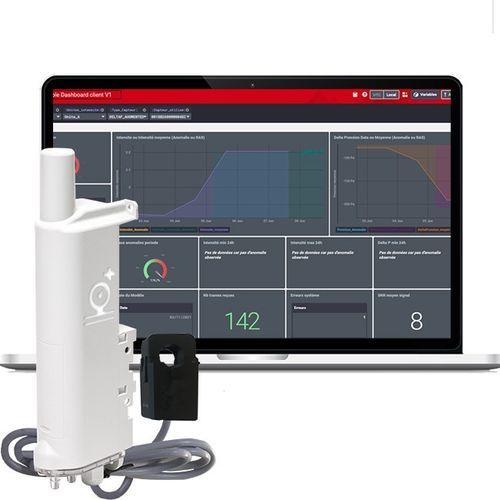

Pressure measuring system ARF8283AB

direct-contactindirectcurrent injection

Overview
The Smart Delta P solution monitors ventilation systems to anticipate maintenance and optimise operation. It integrates an Adeunis Smart Delta P IoT sensor (differential pressure and current measurement), dedicated firmware with mathematical aggregates and edge AI, and the Carl Software IoT platform to process data, build numerical models and generate alerts. The sensor connects to existing ventilation installations via two tubes and a current clamp and learns a normal operating profile before detecting anomalies.

Benefits of the IoT solution

• Enables upstream maintenance qualification
• Reduces intervention and operational costs
• Extends service life of monitored equipment
• Helps ensure indoor air renewal and compliance

Highlights of the IoT solution

• Compatible with any existing ventilation system (AHU, CMV)
• No sensor-side configuration required thanks to on-board AI
• Automatically identifies normal operating modes and derives drifts and alert thresholds

Key components
The solution comprises the Adeunis Smart Delta P IoT sensor with firmware embedding mathematical aggregates, AI and edge computing capabilities for local data processing, and the Carl Software IoT platform for data analysis, numerical model building and alerting/predictive maintenance.

How the IoT solution works
The sensor observes and analyses 'normal' operation during a learning phase. After learning, it detects early signs of abnormal operation and sends alerts to the Carl Software platform via IoT networks. Processed data enables facility managers to adjust ventilation settings and schedule preventive maintenance.

Functions
Measure

• Aggregate differential pressure measurements
• Aggregate current measurement data via current clamp

Alert

• Anomaly detection alerts*
• Filter clogging detection alerts*

Act

• Control of digital outputs

Notes
*Alert functions for anomaly and clogging detection are available when paired with BL Predict from Carl Software.

Technical specifications

• Model / commercial name: Smart Delta P
• Part number (example shown on product page): ARF8283AB (SMART DELTA P LoRaWAN EU863-870)
• 2 digital inputs/outputs to couple an outlet sensor or detect presence of water on the floor
• Local configuration or configuration via network
• Operating temperature range (sensor): -20°C to +70°C
• Delta pressure measurement range: -500 Pa to +500 Pa
• Delta pressure accuracy: ±25 Pa
• Casing rating: IP68
• Dimensions: 200 x 63.5 x 34 mm
• Replaceable battery; lifetime of several years
• Integrated fastening system: DIN rail, tube, wall, collar
• Radio band: LoRaWAN® EU863-870
• Standards: Directive 2014/53/EU (RED)
• Current transducer: operating temperature -25°C to +60°C; fire resistance UL94-V0; accuracy ±2%; available from 5 A; output reported via 0-10 V conversion
