Float level sensor ARF817 series

for liquidsliquidLoRaWAN

Overview

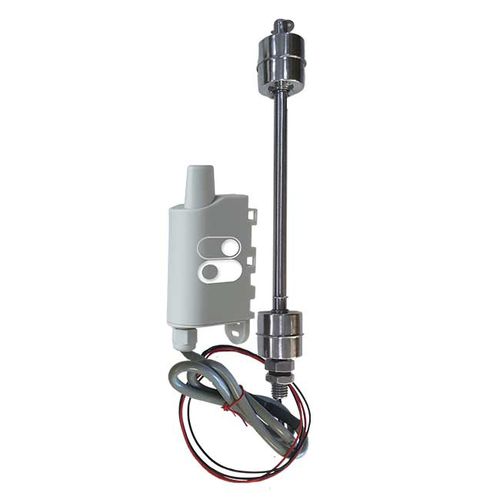

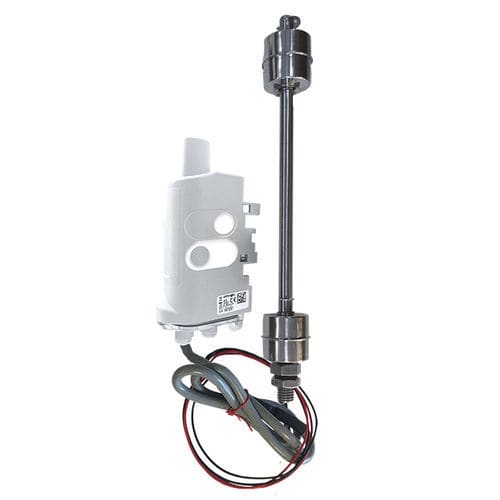

The Double-level-sensor is a ready-to-use product enabling the detection of a double level of liquid. The package is composed of a DRY CONTACTS transceiver and a double-level sensor. Default settings have been established to simplify product installation by the user.

Highlights of the IoT sensor

• 4 configurable inputs/outputs:
  • Control an output based on change in the state of an input
  • Remote and near-real-time control of output – LoRaWAN Class C
  • Track the time spent in a given state
• Over 15 years of autonomy (depending on version and configuration)
• Local and remote configuration
• Data transmission modes: periodic and/or event-triggered
• Compatible with KARE
• Available versions: LoRaWAN: EU863-870 / US902-928 / AU915-928 / AS923-1; Sigfox: RC1 / RC2 / RC4

What actions are carried out by the connected sensor?

• Alert: Alert on events – warn when the level rises or drops, anticipate an overflow, prevent the end of the tank.
• Monitor: Count the number of status changes, evaluate the time spent in a given state.

Features of the Double Level Sensor

• Four configurable digital inputs/outputs
• LoRaWAN Class C (with external power supply)
• Periodic and/or event-based transmission
• Configurable life cycle
• Product error, configuration error, and low battery alerts
• Operating temperature range (transceiver): -25°C to +70°C
• Replaceable battery
• Integrated fastening system: DIN rail, tube, wall mount, collar
• Configuration:
  • Local, via a USB port
  • Remote, via the network, enabling choice of transmission modes, periodicity, and type of interface (input/output)
• Certifications: Directive 2014/53/UE (RED); US: FCC - Title 47 CFR Part 15; Canada: RSS-247 Issue 2; AS/NZS 4268

Double level sensor (probe) specifications

• Operating temperature range (probe): up to 120°C
• Dimensions: 215 mm total / 200 mm body float
• Casing: stainless steel 304
• Cable length: about 1 m
• Operating pressure: 1 MPa
• Maximum pressure: 5 MPa

Area / Radio versions supported

• LoRaWAN: EU863-870, US902-928, AU915-928, AS923-1
• Sigfox: RC1, RC2, RC4

Sensor position

• In a tank
• In an evacuation nozzle

Part numbers (product references)

• LoRaWAN: ARF8170ARA-B02 (EU863-870); ARF8170BRA-B02 (US902-928); ARF8170IRA-B02 (AU915-928); ARF8170JRA-B02 (AS923)
• Sigfox: ARF8171BA-B02 (RC1); ARF8170DRA-B02 (RC2); ARF8170KRA-B02 (RC4)

Technical documentation

• Datasheets available for LoRaWAN and Sigfox versions (product datasheets)

Specifications / technical data

• Product type: Double level liquid sensor with DRY CONTACTS transceiver
• Package composition: Dry contacts transceiver + double-level sensor probe
• Inputs/Outputs: 4 configurable digital inputs/outputs
• Transmission: LoRaWAN (multiple regional bands) and Sigfox (RC1/RC2/RC4)
• Transmission modes: Periodic and/or event-triggered
• Power / Autonomy: Replaceable battery; over 15 years of autonomy depending on version and configuration
• Operating temperature (transceiver): -25°C to +70°C
• Operating temperature (probe): up to 120°C
• Probe dimensions: 215 mm total / 200 mm body float
• Probe casing: Stainless steel 304
• Probe cable: ~1 m
• Probe pressure: Operating 1 MPa; Max 5 MPa
• Fastening: DIN rail, tube, wall mount, collar
• Configuration: Local via USB; Remote via network (configuration of transmission modes, periodicity, I/O behavior)
• Alerts: Product error, configuration error, low battery, level change alerts
• Standards & Certifications: RED 2014/53/EU; FCC 47 CFR Part 15; Canada RSS-247 Issue 2; AS/NZS 4268
• Part numbers: See part numbers list for regional variants (LoRaWAN and Sigfox)
