Indoor air quality sensor BREATH
VOCPM10PM2.5

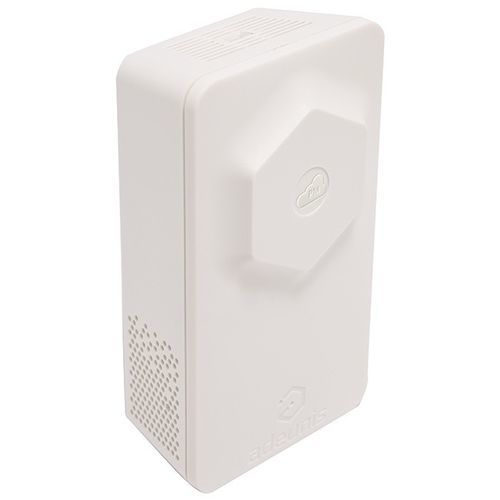

Indoor air quality sensor - BREATH - ADEUNIS - VOC / PM10 / PM2.5
Indoor air quality sensor - BREATH - ADEUNIS - VOC / PM10 / PM2.5
Add to favorites
Compare this product

Characteristics

Type
indoor
Measured parameter
VOC, PM2.5, PM10, PM1
Output
LoRaWAN
Protection level
IP20
Other characteristics
wall-mounted, with data logger

Description

Summary
Sensor for monitoring indoor air quality to optimise occupant comfort and safety.

Key features
  • Multi-parameter sensing: PM1, PM2.5, PM10 and TVOC
  • Alert button and dry-contact input for event counting
  • 24-hour daily summary log for trend analysis
  • Visible status indicator on enclosure for user information
  • Flexible reporting: periodic transmission and/or event-driven messages
  • Power optimisation via data historization and configurable reporting
  • Data accessibility with redundancy and remote/local configuration
  • Network quality test at start-up; Class C LoRaWAN operation
  • Error and fault management for configuration and fine-particle sensor hardware
  • Compatible with KARE and KARE+ platforms

Functions
Measure
  • Periodic monitoring of fine particulate concentrations (PM1/PM2.5/PM10)
  • Periodic monitoring of total volatile organic compounds (TVOC)

Count events
  • Count presses on the alert button
  • Count events from the dry-contact input

Alert
  • Trigger alarms when configured high or low thresholds are exceeded
  • Trigger on alert button press or dry-contact events

Associated services
  • Radio mapping
  • Connectivity assessment
  • Device configuration
  • Deployment support
  • Payload decoding
  • Technical assistance
  • Device Management

Part number
ARF8377AA BREATH LoRaWAN® EU863-870

Technical specifications
  • Mechanical: Weight: 107.5 g; Dimensions: 111 x 61 x 40 mm; Enclosure: IP20, Bayblend® FR3010 (PC/ABS), white; Mounting: wall or floor
  • Operating conditions: Temperature: 0°C to +50°C; Humidity: 0 to 85% RH (non-condensing)
  • Power: External power supply included
  • Configuration: Local via IoT Configurator; Remote via downlink or KARE platform; Over-the-air: KARE+ compatible; Security: PIN/PUK protection
  • Data management: Periodic and/or event-based reporting; Data historization; Redundancy for accessibility; Daily 24-hour summary log; Error/fault handling for configuration and fine-particle sensor
  • Radio: LoRaWAN® EU863-870, Class C
  • Regulations & certifications: Directive 2014/53/EU (RED)
