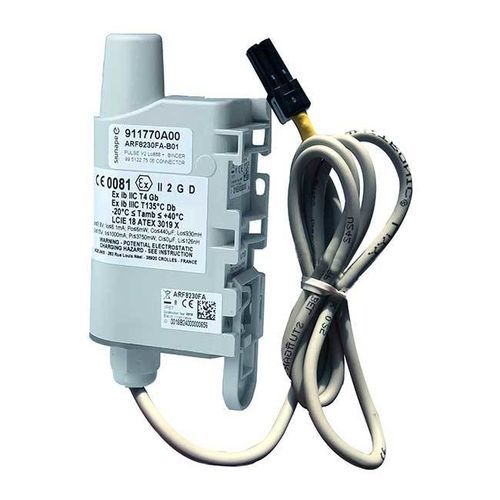

IoT gas meter ARF8230FA-B02

Product overview
ATEX PULSE IoT sensor pre-wired with a GAZPAR 2-pin female connector to read pulse outputs from gas meters. Designed for periodic index transmission, flow monitoring and leak/fraud detection for industrial and utility gas metering applications.

Highlights OF THE IOT SENSOR

• Pre-wired with GAZPAR connector (2-pin, 1 m cable)
• Periodic monitoring of meter index and flow (min/max)
• Leakage and fraud detection with configurable alerts
• Local or remote configuration
• Battery-operated with soldered cell
• Time-stamped transmissions (LoRaWAN)
• Network test at start-up

ATEX product (usage zones)

• Gas & steam
  • Zone 1: immediate proximity to the sensitive area
  • Group IIC: hydrogen gases and vapors, acetylene …
• Dust
  • Zone 21: immediate proximity to the sensitive area

What the connected sensor does

• Monitor: periodically read and transmit gas meter index; monitor flow rates (min/max)
• Alert: trigger alarms when flow thresholds are exceeded or when a leak is detected (AND/OR logic)

Sensor features

• Periodic transmission modes with optional history
• Data redundancy and configurable life frame
• Time stamping and LoRaWAN network test on start-up
• Customisable join phase for network provisioning
• Alerts for product error, configuration error and low battery
• Cable inductance < 0.004 mH; cable capacitance < 0.00012 µF

General specifications

• Dimensions: 105 x 50 x 27 mm
• Weight: 70 g
• Enclosure: IP67
• Integrated fastening: DIN rail, tube, wall mount, flange
• Operating temperature: -20°C to +40°C
• Soldered (non-user-replaceable) battery

Gazpar connector

• 2-pin female GAZPAR connector
• Cable length: 1 m
• Cable inductance < 0.004 mH
• Cable capacitance < 0.00012 µF

PULSE ATEX Specifications

• ATEX II 2 G D
• Ex ib IIC T4 Gb
• Ex ib IIIC T135°C Db
• Ambient temperature: -20°C < Tamb < +40°C
• Ui ≤ 3.9 V; Ii ≤ 6.1 mA; Po ≤ 6 mW; Co ≤ 440 µF; Lo ≤ 930 mH
• Ui ≤ 15 V; Ii ≤ 1000 mA; Pi ≤ 3750 mW; Ci = 0 µF; Li = 126 nH

Certifications & compliance

• LoRaWAN EU863-870
• Directive 2014/53/EU (RED)

Expected autonomy

• 1 index transmission per hour (24 frames/day), 500 pulses/day with pull-up enabled
• LoRaWAN EU863-870: SF7 > 10 years; SF12: 7 years

Available versions

• Sensor available in gas meter–ready variants (GAZPAR connector options such as binder connector and PULSE ATEX impulse interface)

Technical specifications

• Product: ATEX PULSE IoT sensor combined with GAZPAR connector
• Connector: GAZPAR 2-pin female, 1 m cable
• Enclosure rating: IP67
• Dimensions: 105 x 50 x 27 mm
• Weight: 70 g
• Operating temperature: -20°C to +40°C
• ATEX rating: ATEX II 2 G D; Ex ib IIC T4 Gb; Ex ib IIIC T135°C Db
• Electrical limits: Uo ≤ 3.9 V; Io ≤ 6.1 mA; Po ≤ 6 mW; Co ≤ 440 µF; Lo ≤ 930 mH; Ui ≤ 15 V; Ii ≤ 1000 mA; Pi ≤ 3750 mW; Ci = 0 µF; Li = 126 nH
• Radio: LoRaWAN EU863-870
• Battery: soldered (non-user-replaceable)
• Functions: periodic index transmission, flow monitoring, leakage/fraud detection, threshold alerts, local/remote configuration, time stamping, network test on startup
