Textile cutting machine

for plasticsnumerical controlfor the automotive industry

Overview

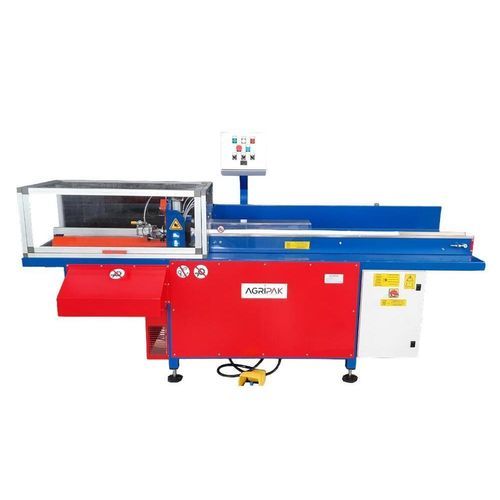

The Agripak cutting machine for monofilament tows is engineered to improve efficiency and precision in industrial fibre cutting operations. It integrates an electro-pneumatic cutting drive, automated tow feeding and comprehensive safety measures to maintain consistent, repeatable cuts while reducing manual handling.

Key Features

• Electro-pneumatic cutting system for accurate, high-speed cuts
• Polycarbonate safety guards with micro safety switches for operator protection
• Automatic tow feeding via motorized conveyor to streamline production flow
• Remote decentralized control panel for intuitive operation and quick adjustments
• Adjustable cutting range from 30 mm to 600 mm to accommodate multiple product formats

Technical Specifications

• Cutting range: 30–600 mm
• Cutting drive: electro-pneumatic
• Conveyor: motorized for automatic coil/tow feeding
• Control: decentralized remote control panel

Why Choose Agripak Cutting Machine?
Agripak’s solution delivers precise length control, reduced cycle times and improved safety for continuous production of monofilament-based components. Its automation features lower manual intervention and support consistent output quality across batches.

Applications

• Fibres for concrete reinforcement
• Filaments for brushes, brooms and paintbrushes
• Automated processing and packaging in construction and industrial sectors
• Custom cutting for varying tow sizes and materials

Characteristics / Technical specifications

• Cutting range: 30–600 mm
• Cutting drive: electro-pneumatic
• Feeding: automatic via motorized conveyor
• Control: decentralized remote control panel
• Safety: polycarbonate guards with micro safety switches
• Suitable for: concrete reinforcement fibres, brooms and brushes, various tow materials and sizes
