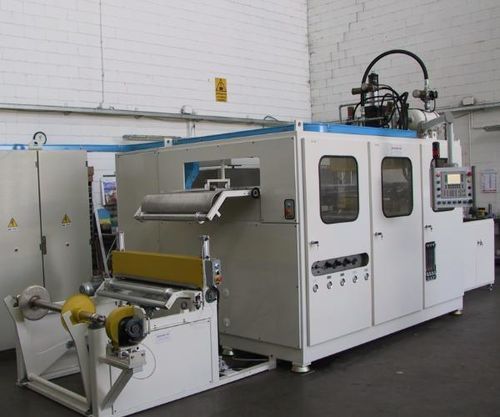

Plastic sheet thermoforming machine M series

ABSPPPS

Overview
Our BM & TM series thermoforming machines are fully automatic models for producing parts in PS, EPS, PP, EPP, PVC, PET, PETG, ABS, HIPS, OPS, PLA and mPLA starting from bobbin.

Technology
The 22 BM/TM and 30 BM/TM models use a simultaneous forming & punching system with moulds that incorporate the cutting system to guarantee optimal dimensional precision of formed parts. The TM series features a bottom tilting-platen that allows the use of multi-row moulds.

Key features

• Mechanical-cams actuation with an electronic programmer controlling the working cycle; parameters can be adjusted during operation and mould data stored for quick changeovers.
• Can be integrated with an in-line extrusion line designed for this production system to obtain finished products directly from raw-material granules.

Options
These thermoforming machines can be supplied with various optional accessories on request.

Additional information
Further information and complete specifications are available in the product info sheet (PDF).

Technical specifications

• Supported materials: PS, EPS, PP, EPP, PVC, PET, PETG, ABS, HIPS, OPS, PLA, mPLA (from bobbin).
• Available model variants: 22 BM/TM and 30 BM/TM.
• Main technology: simultaneous forming & punching with moulds incorporating the cutting system for high dimensional precision.
• TM series specific: bottom tilting-platen enabling the use of multi-row moulds.
• Drive and control: mechanical-cams actuation; electronic programmer for cycle control, on-the-fly parameter modification and mould data storage.
• Integration: compatible with in-line extrusion lines to produce finished parts from raw granules.
• Accessories: multiple optional accessories available on request.
