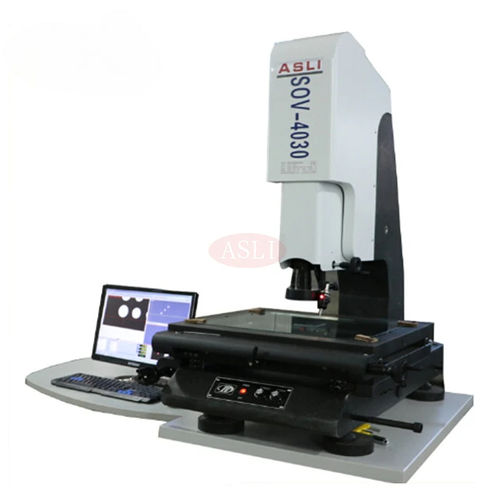

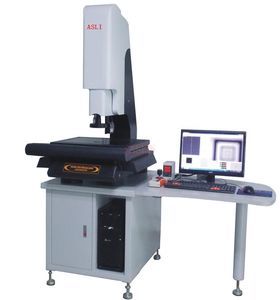

Computer-controlled coordinate measuring system SOV series

arm-freefor small partsfor metrology

Application: The 3D video measuring system is engineered for three-dimensional measurement of complex workpieces including slopes, rounds, grooves, columns, spheres, dimensional features and blind holes, as well as geometric parameters such as inter-feature distances and angles. Suitable for machining, electronics, mobile components, appliances, connectors, precision fixtures, plastics, hardware and related industrial applications.

Technical parameters:
Model: SOV-4030 | SOV-3020 | SOV-2010
Dimensions (WxHxD, mm): 860x650x1120 | 700x500x900 | 570x370x790
Zoom multiple (17" screen): 20x-120x, 30x-225x (model dependent)
CCD: Color, 1/3", 8,000,000 px
X*Y*Z Stroke (mm): 400x300x150 | 300x200x150 | 200x100x100
Bench dimensions (mm): 600x450 | 500x350 | 350x270
Bench load (kg): 30 | 25 | 30
Optional configuration: UK probe available
Weight (kg): 350 | 180 | 100

Features:

• RS-232 communication for PC connection and compatibility with specialized 2D measuring software for data management and graphical output.
• Optional printer and multiple measurement/scanning system configurations available to suit production workflows.
• Measures points, lines, circles, arcs, ovals and rectangles; multipoint positioning function enhances measurement accuracy.
• Synchronized X, Y, Z axis motion for efficient, repeatable inspection routines.

Warranty: One-year free warranty for the complete machine; lifetime maintenance available.

After-sale service: Response within 8 hours upon receipt of customer inquiry.

Service: OEM service, design service, buyer label service.

Characteristics / technical specifications:

• Primary model designation: SOV series (SOV-4030, SOV-3020, SOV-2010).
• Measurement scope: 3D measurement of complex shapes (slopes, rounds, grooves, columns, spheres, blind holes) and geometric parameters (distances, angles).
• CCD sensor: Color 1/3"; 8,000,000 pixels.
• Zoom capability: up to 20x-120x and 30x-225x on a 17" display (depending on model).
• X*Y*Z stroke options by model: 400x300x150 mm / 300x200x150 mm / 200x100x100 mm.
• Bench dimensions and load capacity vary per model (see technical table above).
• Optional UK probe for expanded measurement capability.
• Weight varies by model: 350 kg / 180 kg / 100 kg.
• Warranty: 1 year free; lifetime maintenance available.
• Applications: suited to machinery, electronics, mobile fittings, home appliances, connectors, precision fixtures, plastics, hardware and adjacent industries.
