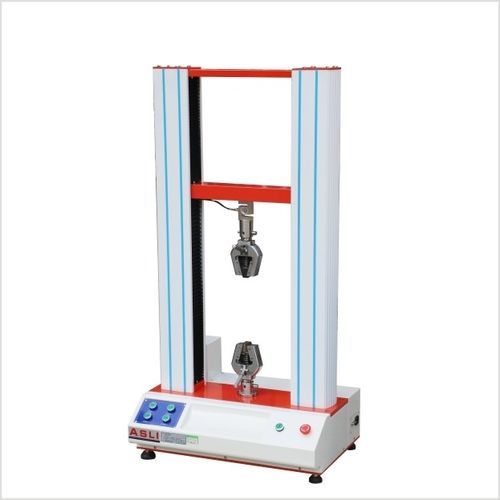

Shearing testing machine AS-DT-50

compressiontensilepeel force

Overview
The AS-DT-50 500N Desktop Micro-Computer Tensile Tester is an industrial bench tester for measuring tensile, compression, shear and peel properties of materials and components across manufacturing and R&D environments.

Product Description
The tester performs tension, compression, shearing, adhesion/peel and tear tests on specimens, semi-finished and finished products. It is suited for incoming quality control (I.Q.C.), production Q.C., laboratory testing, materials research and standards verification. The instrument integrates micro-computer control, adjustable test speed and multiple load ranges for precise measurement and repeatable results.

Product Parameters

• Model: AS-DT-50
• Sensing method: Load cell
• Capacity (kgf): 3, 5, 10, 20, 30, 50
• Rated force: 500 N (approx. 50 kgf)
• Maximum stroke: 300 mm
• Load accuracy: ±1%
• Load resolution: 1/1000
• Speed input: Knob-style
• Test speed: 25–300 mm/min
• Dimensions (W×H×D): 620×1070×270 mm
• Weight: 40 kg
• Power: AC220V, single phase, 3 lines

Capabilities / Typical Test Items

• Tensile strength (tension)
• Compression
• Shearing force
• Adhesion and peel force
• Tear strength

Safety devices

• No-fuse protection switch
• Phase-sequence and low-voltage electrical protection in control system
• Over-heat protection switch
• Overload protection for refrigeration compressor
• High/low voltage protection switch for refrigeration compressor
• Over oil-pressure protection for refrigeration compressor
• Anti-phase protection system
• Overload protection for circulation fan motor

After-sale service
Technical feedback within 8 hours of inquiry.

Service

• OEM service
• Design support
• Buyer label service

Packaging

• Inner: PP film
• Vacuum package
• PP film outer layer
• 10 mm PU foam protection
• Strong plywood case
• Standard ASLI case marking

ASLi main test equipments (examples)

• Environmental chambers (temperature/humidity)
• Thermal shock chamber
• PCT/HAST chamber
• ESS chamber and stability chambers
• Vacuum oven
• Electrodynamic vibration shaker
• 500N Desktop Micro-Computer Tensile Tester
• Mechanical shock tester
• Environmental combined vibration chamber

Technical specifications

• Model: AS-DT-50
• Sensing method: Load cell
• Capacity ranges (kgf): 3, 5, 10, 20, 30, 50
• Maximum stroke: 300 mm
• Load accuracy: ±1%
• Load resolution: 1/1000
• Speed control: Knob-style input
• Test speed range: 25–300 mm/min
• Dimensions (W×H×D): 620×1070×270 mm
• Weight: 40 kg
• Power supply: AC220V, single phase, 3 lines
