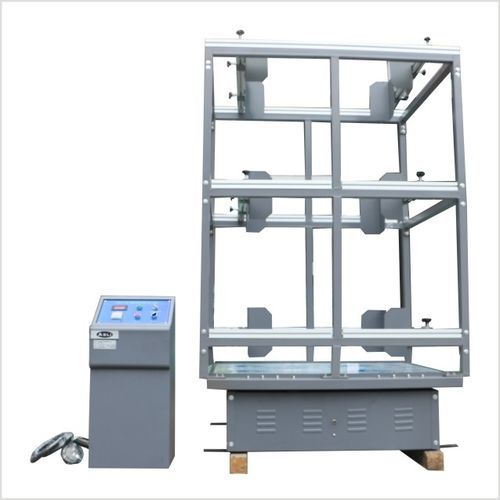

Vibrating table with timer AS series

Introduction
This vibration bump tester is designed to simulate transport vibration for packaged goods, printed circuit boards and electrical components to evaluate resistance to vibration and identify potential transport-induced damage. Test results support packaging design and qualification for distribution.

Features

• Lower acquisition cost (approx. 10% of comparable US models).
• Digital instrument displaying vibration frequency.
• Synchronous quiet belt drive for stable operation.
• Specimens clamped on a guide rail for safe and easy handling.
• Heavy-duty base with trench and damping pad for simple installation and reduced transmission of vibration.
• DC motor with stepless speed control, smooth operation and high load capacity.
• Rotary vibration mode (commonly referred to as "racing"), compliant with ASTM/IEC transport standards.

Specification
Packing and Shipping Vibration Table Bump Tester
Model: AS-100 | AS-200 | AS-300 | AS-600 | AS-1000
Load (Kg): 100 | 200 | 300 | 600 | 1000
Effective Area WxD (mm): 1200×1000 | 1200×1000 | 1200×1300 | 1300×1400 | 1500×1500
Weight (Kg): 200 | 250 | 350 | 450 | 600
External Dimension WxHxD (mm): 1300×650×1300 | 1300×650×1300 | 1300×650×1400 | 1400×750×1500 | 1600×850×1600
Rotating Speed (RPM): 150–300
Amplitude: 25.4 mm (1 inch) — per ASTM/IEC transport standard
Time Setting (Approx.): 0–999 hours
Mode of Vibration: Reciprocating type

Technical characteristics

• Product name: Packing and Shipping Vibration Table Bump Tester
• Models available: AS-100, AS-200, AS-300, AS-600, AS-1000
• Load capacity (Kg) by model: AS-100: 100; AS-200: 200; AS-300: 300; AS-600: 600; AS-1000: 1000
• Effective area (WxD mm) by model: AS-100/AS-200: 1200×1000; AS-300: 1200×1300; AS-600: 1300×1400; AS-1000: 1500×1500
• Machine weight (Kg) by model: AS-100: 200; AS-200: 250; AS-300: 350; AS-600: 450; AS-1000: 600
• External dimensions (WxHxD mm) by model: AS-100/AS-200: 1300×650×1300; AS-300: 1300×650×1400; AS-600: 1400×750×1500; AS-1000: 1600×850×1600
• Rotating speed (RPM): 150–300
• Amplitude: 25.4 mm (1 inch) — per ASTM/IEC transport standard
• Time setting (approx.): 0–999 hours
• Mode of vibration: Reciprocating type
