Mechanical impact vibrator SS series

impactfor marine applicationsmargarine

Summary
The high-acceleration mechanical shock tester for lithium batteries is designed to evaluate impact performance of products across sectors such as electronics, aerospace, marine, military, automotive spare parts and transportation. It performs impact tests with multiple waveform options (half-sine, trapezoidal, sawtooth, square) to simulate real shock conditions and support package and product design validation.

Product application
The tester measures and verifies product and packaging resistance to shocks; it can reproduce realistic environmental shock profiles using different waveforms, helping to assess and improve structural integrity of the product and its packaging.

Standards and references mentioned

• IEC62133-2012
• UL1642
• UN38.3
• GB31241-2014
• YD/T 2344.1-2011 (LiFePO4 battery system for telecommunications, Part 1)
• GB/T 2423.5 (Test Ea: Shock)
• GB/T 2423.6 (Test Eb: Bump)
• IEC 68-2-29 (Test Eb: Impact)
• JJG497-2000 (Verification regulation for functional testing machines)

SPECIFICATIONS FOR Shock Impact Tester (summary table)
Models: SS-5 | SS-10 | SS-25 | SS-50 | SS-100 | SS-200
Load capacity (Kg): 5 | 10 | 25 | 50 | 100 | 200
Table size (mm): 120x120 | 200x200 | 350x350 | 450x450 | 650x650 | 750x750
Pulse acceleration (m/s2) - Half-sine: 150~15000 | 150~15000 | 150~15000 | 150~6000 | 150~6000 | 150~3500
Pulse acceleration (m/s2) - Trapezoidal: 300~1000 (all models)
Pulse acceleration (m/s2) - Sawtooth: 150~1000 (all models)
Pulse width - Half-sine (ms): 0.5~18 | 0.6~18 | 0.8~25 | 1.5~30 | 1.5~30 | 2~30
Pulse width - Trapezoidal (ms): 6~12 | 6~12 | 6~18 | 6~12 | 6~12 | 6~12
Pulse width - Sawtooth (ms): 6~18 (all models)
Weight (kg): 600 | 700 | 900 | 2600 | 3300 | 4000

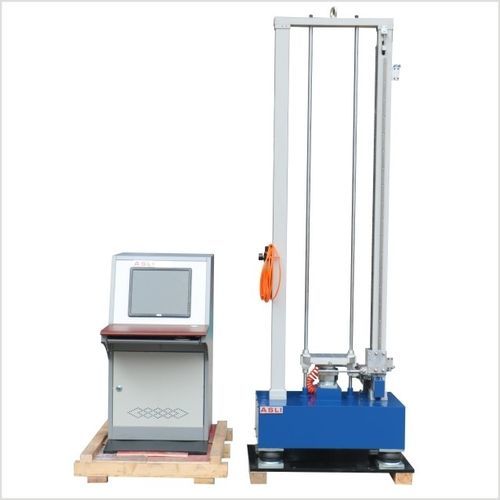

Reference images
Reference photos of the equipment and manufacturer exhibition displays (images of the machine and visits/exhibitions).

Main features

• Built-in self-protection device to prevent secondary impacts.
• Digitally controlled drop/impact height for precise test execution.
• High repeatability of test data.
• Signal generator with multiple waveform options: half-sine, trapezoidal, sawtooth, square, etc.
• Effective vibration isolation to control environmental impact within requirements.
• Good safety performance.
• Complies with shock wave standards such as IEC, MIL, GJB, JIS, ASTM and other national and international standards.

Characteristics / technical specifications

• Series name: SS series
• Available models: SS-5, SS-10, SS-25, SS-50, SS-100, SS-200
• Capacity range: 5 kg to 200 kg depending on model
• Table sizes: from 120x120 mm to 750x750 mm depending on model
• Acceleration range (half-sine): up to 15000 m/s² on the smallest models; lower maximum values on larger models (e.g. 6000 or 3500 m/s²)
• Adjustable pulse width by waveform: half-sine (0.5–30 ms depending on model), trapezoidal (approx. 6–18 ms), sawtooth (6–18 ms)
• Equipment weight: from 600 kg to 4000 kg depending on model
• Supported waveforms: half-sine, trapezoidal, sawtooth, square
• Standards compatibility: IEC62133, UL1642, UN38.3, GB31241-2014 and related international shock testing standards
