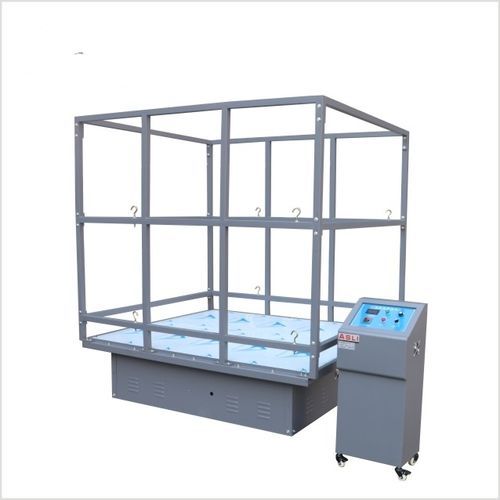

Vibrating table with timer AS series

Overview
This tester evaluates vibration resistance of packaged goods, printed circuit boards and electrical products by reproducing transport vibration and shocks. Results support packaging design and failure analysis.

Product Description
The tester uses an eccentric shaft to generate an elliptical motion that simulates road and sea transport vibrations. The test platform is mounted on the eccentric bearing; as the shaft rotates the platform performs an elliptical vertical motion. Adjusting shaft speed simulates different vehicle or vessel speeds and vibration intensities.

Design standards
ASTM, ISTA, EN, ANSI, UL — suitable for toys, electronics, furniture, gifts, ceramics, packaging and other items for simulated transport testing.

Key features

• Digital meter displays vibration frequency.
• Synchronous belt drive ensuring low noise.
• Sample rail clamping for secure and easy fixation.
• Heavy-duty channel-steel base with vibration-damping rubber pad for stable installation.
• DC motor speed regulation for stable operation and high load capacity.
• Rotary vibration mode (commonly known as horse racing) compliant with common transport standards.

Standard requirements
Amplitude: 25.4 mm (1 in, fixed).
Frequency / speed: 1.5-5 Hz (≈100-300 r/min) adjustable; rotating speed typically 150-300 RPM.
Test basis: Total vibration count T = 14200 / CPM.
Time setting: 0-999 hours.
Mode of vibration: reciprocating (rotary) type.

Specifications (by model)
Mode: AS-100 | Load (Kg): 100 | Effective Area WxD (mm): 1200×1000 | Weight (Kg): 200 | External Dimension WxHxD (mm): 1300×650×1300
Mode: AS-200 | Load (Kg): 200 | Effective Area WxD (mm): 1200×1000 | Weight (Kg): 250 | External Dimension WxHxD (mm): 1300×650×1300
Mode: AS-300 | Load (Kg): 300 | Effective Area WxD (mm): 1200×1300 | Weight (Kg): 350 | External Dimension WxHxD (mm): 1300×650×1400
Mode: AS-600 | Load (Kg): 600 | Effective Area WxD (mm): 1300×1400 | Weight (Kg): 450 | External Dimension WxHxD (mm): 1400×750×1500
Mode: AS-1000 | Load (Kg): 1000 | Effective Area WxD (mm): 1500×1500 | Weight (Kg): 600 | External Dimension WxHxD (mm): 1600×850×1600
Rotating Speed (RPM): 150~300 (applies across models)
Amplitude: 25.4 mm (1 inch)

Technical specifications

• Design standards: ASTM, ISTA, EN, ANSI, UL.
• Amplitude (fixed): 25.4 mm.
• Frequency / rotating speed: 1.5-5 Hz / 100-300 r/min (adjustable); typical RPM 150-300.
• Test basis: T = 14200 / CPM.
• Time setting range: 0-999 hours.
• Vibration mode: reciprocating / rotary vibration.
• Drive and control: synchronous belt drive; DC motor with speed regulation; digital frequency display.
• Sample fixation: rail clamping system.
• Base: heavy-duty channel steel with vibration-damping rubber pad.
• Available models: AS-100, AS-200, AS-300, AS-600, AS-1000.
• Effective test area examples: 1200×1000 mm to 1500×1500 mm depending on model.
