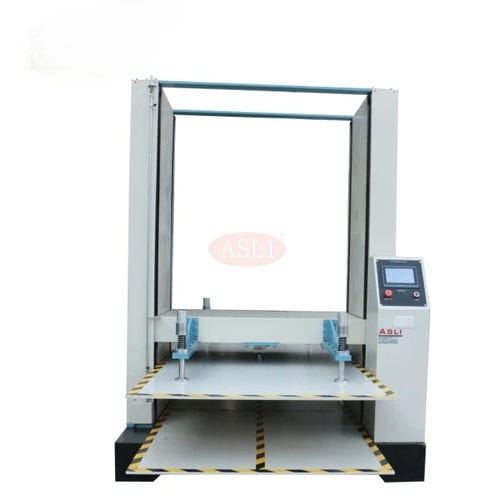

Compressive strength testing machine AS-PCC-2000

compression resistancecompressionforce

Description
The AS-PCC-2000 Digital Carton & Box Compression Resistance Testing Machine is engineered to evaluate the compression resistance and stacking endurance of corrugated boxes and packaging containers. The AS-PCC-2000 features a dual-unit design, high-precision force sensors, and configurable test speeds to help manufacturers optimize packaging design and prevent transit collapse.

Product details
The AS-PCC-2000 Box Compression Tester is a quality control instrument designed to measure ultimate load strength and stacking behavior of packaging materials. By subjecting paper boxes, corrugated cartons, and containers to controlled compressive loads, this machine helps engineers assess structural integrity, verify safety margins, and ensure compliance with international packaging standards during storage and transportation.

Technical table
Model: AS-PCC-2000
Capacity (Kg): 2000 (5000 optional)
Unit: Kgf or N, switchable
Analytic Accuracy: 1/10000
Accuracy: ±1%
Test Space (mm): 1200 × 1200 × 1000 (or as assigned)
Compress Speed Rate: Step-less variable speed (typically 10 ± 3 mm/min)
Dimensions (W×H×D) Host: 1500 × 2100 × 1220 mm
Control cabinet: 1150 × 1350 × 640 mm
Weight Host: 1043 Kg
Control cabinet: 240 Kg
Power: AC380V, 3∮, 5 lines

Features / technical specifications

• Dual-unit design for compression and stacking tests.
• High-precision force sensors with 1/10000 resolution.
• Overall accuracy: ±1%.
• Available capacities: standard 2000 kg; optional 5000 kg.
• Switchable units: Kgf or N.
• Customizable test space; example: 1200 × 1200 × 1000 mm.
• Step-less variable compression speed (typically 10 ± 3 mm/min).
• Host dimensions: 1500 × 2100 × 1220 mm; control cabinet: 1150 × 1350 × 640 mm.
• Host weight: 1043 kg; control cabinet weight: 240 kg.
• Power supply: AC380V, 3∮, 5 lines.
