Electronic product drop tester AS-D-B-200

for small components

Overview

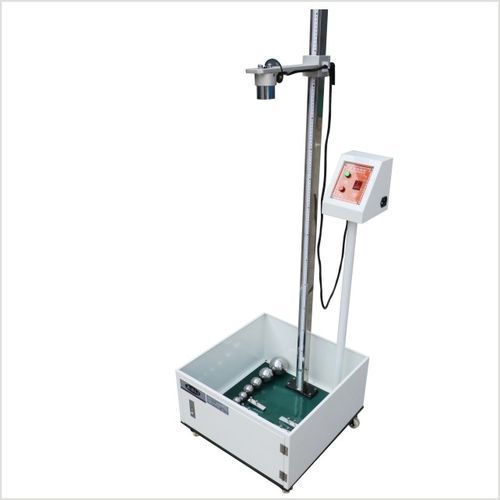

The AS-D-B-200 steel ball drop test machine is designed for impact resistance testing in accordance with IEC 60950-1. It uses a DC electromagnetic pick-and-release system: the selected steel ball is lifted by an electromagnet and released on command for a free-fall impact. Drop height is adjustable and indicated by an integrated height scale. Suitable for laboratory and production quality control of rigid materials and components.

Applications

• Assess impact resistance of materials and components at specified drop heights (IEC 60950-1).
• Applicable to ceramics, acrylics, glass, plastics and similar rigid materials.
• Used for enclosures, displays, panels and other hardware requiring impact verification.

Operation steps

• Place the test specimen inside the safety fence and position it using the infrared alignment spot; clamp the specimen securely.
• Rotate the height adjustment handle to the required drop height and lock it.
• Connect power (AC 220 V) and switch on the main power; verify the power indicator lamp.
• Press the start button, select the required steel ball and bring it into contact with the electromagnet so the ball is held.
• Press the test/release button to perform the drop impact.
• After testing, switch off the power and remove the specimen.

Ball Drop Test Machine Parameters
Model: AS-D-B-200
Max. Height: 0–2 m
Drop Method: Free falling (DC electromagnetic release)
Steel ball set (weights & diameters): 112 g (Φ30 mm), 198 g (Φ36 mm), 225 g (Φ38 mm), 357 g (Φ41 mm), 533 g (Φ51 mm), 1042 g (Φ64 mm), 2280 g (Φ82 mm). Steel ball standard: JIS K-5400
Overall dimension (approx.): W530 × H2040 × D530 mm
Packed dimension (approx.): W640 × H2210 × D640 mm
Machine weight: 100 kg
Power supply: AC 220 V, single phase, 3 lines
Rail: customizable according to customer requirement

Technical specifications

• Model: AS-D-B-200
• Maximum drop height: 0–2 m
• Drop method: Free falling (DC electromagnetic release)
• Steel ball set (weights & diameters): 112 g (Φ30 mm), 198 g (Φ36 mm), 225 g (Φ38 mm), 357 g (Φ41 mm), 533 g (Φ51 mm), 1042 g (Φ64 mm), 2280 g (Φ82 mm)
• Steel ball standard: JIS K-5400
• Overall dimension (approx.): W530 × H2040 × D530 mm
• Packed dimension (approx.): W640 × H2210 × D640 mm
• Machine weight: 100 kg
• Power supply: AC 220 V, single phase, 3 lines
• Rail: customizable upon customer request
