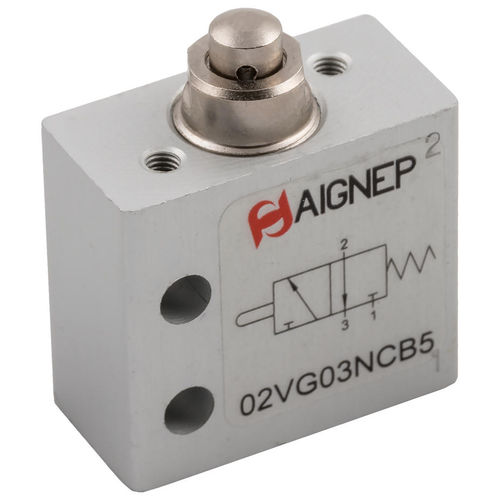

Poppet pneumatic directional control valve 02VG series
manual3/2-wayspring-return

poppet pneumatic directional control valve
poppet pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
poppet
Actuating method
manual
Ports/positions
3/2-way
Other characteristics
spring-return, aluminum, normally closed, miniature, normally open
Flow rate

100 l/min (26 us gal/min)

Operating pressure

Max.: 10 bar (145 psi)

Min.: 2 bar (29 psi)

Description

Material- Anodised aluminium body - Stainless steel spring - NBR seals ThreadedM5 6 bar flow rate with Δp 1 barM5= 100 Nl/min Operating pressure2 - 10 Bar TemperatureMinimum temperature: -10 °C Maximum temperature: +60 °C Actuating force6 N
