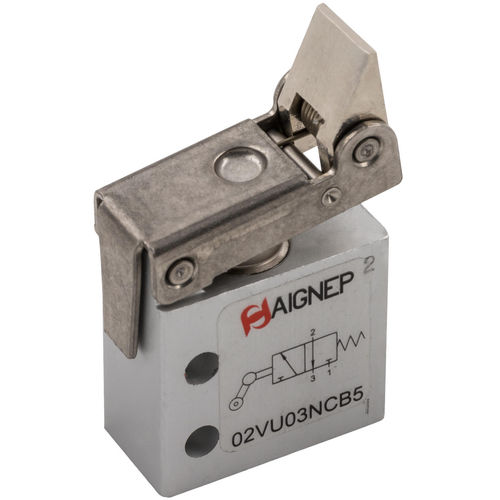

Poppet pneumatic directional control valve 02VUroller lever3/2-wayspring-return
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- roller lever
- Ports/positions
- 3/2-way
- Other characteristics
- spring-return, aluminum, normally closed, stainless steel
- Operating pressure
Min.: 2 bar
(29 psi)Max.: 10 bar
(145 psi)- Flow rate
100 l/min
(26 us gal/min)
Description
Material- Anodised aluminium body
- NBR seals
ThreadedM5
6 bar flow rate with Δp 1 barM5= 100 Nl/min
TemperatureMinimum temperature: -10 °C
Maximum temperature: +60 °C
Actuating force6 N
