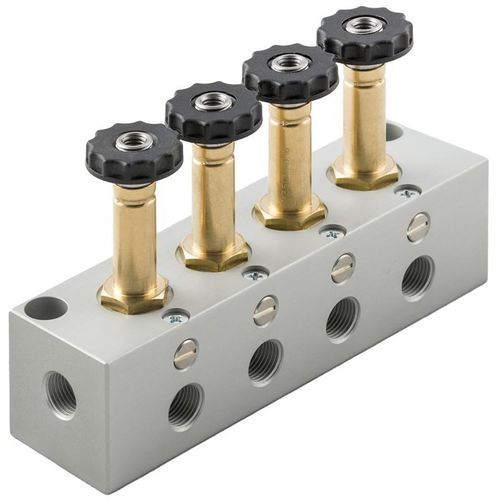

Pilot-operated solenoid valve 07VB series3-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 3-way
- Function
- NC
- Medium
- air
- Body
- manifold, anodized aluminum
- Other characteristics
- bistable
- DN
0.125 in
- Voltage
Min.: 12 V
Max.: 220 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145 psi)
Description
Material- Anodised aluminium body
- NBR seals
6 bar flow rate with Δp 1 bar30 Nl/min
Minimum power3W - 5VA
Manual controlBISTABLE
Torque of tightening the nut solenoid0.6 Nm
