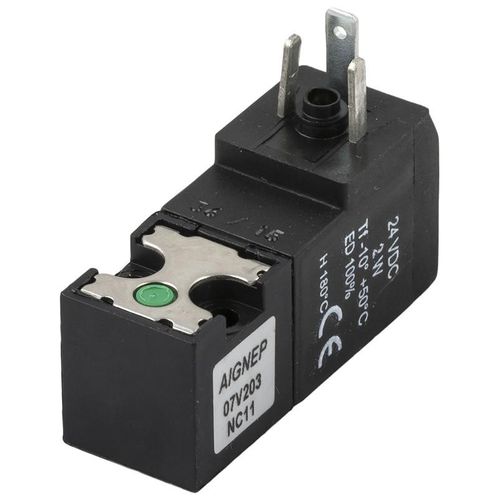

Pilot-operated solenoid valve 07V2 series3-wayNONC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 3-way
- Function
- NC, NO
- Medium
- air
- Body
- miniature
- DN
15 mm
(0.591 in)- Voltage
12 V, 24 V
- Temperature
Min.: -5 °C
(23 °F)Max.: 50 °C
(122 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(101.5 psi)
Description
Flow rate at 6 bar with Δp 1 bar30 Nl/min
Orifice Size1.1mm
Max Number Of Cycles per minute2700
Life expectancy50 MILION CYCLES
Power2.5W
Voltage Tollerance-5% +10%
Respose time when energized10÷12ms
Protection degreeIP50 with CONNECTOR
Class of protectionF (155°C)
