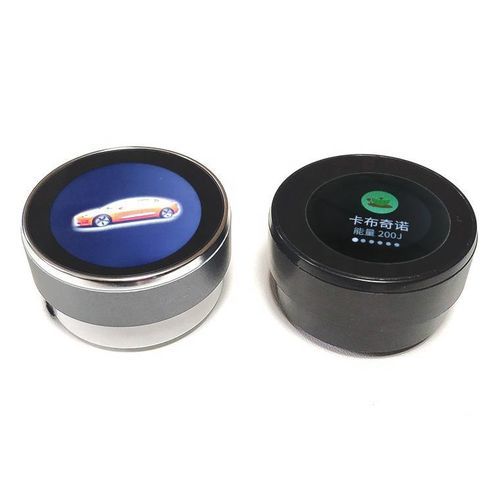

TFT LCD display module LY4712S

color240 x 2401.28"

Product overview
This is a TFT LCD module equipped with a round mechanical knob/encoder intended for HMI and control-panel applications. Available in multiple display sizes and supplied under the brand ASK. Model: LY4712S.

Technical specifications

• Model: LY4712S
• Brand: ASK
• Display type: TFT (transmissive)
• Available sizes: 1.28", 1.30", 1.6", 2.1", 2.4"
• Resolution: 240 x 240
• Brightness: 200 nit
• Panel type: TFT

Interface and compatibility

• Signal interface: MCU
• Connector: 4-pin signal interface
• Integration: designed for microcontroller-driven HMI and embedded control systems

Applications

• HMI and operator panels
• Smart home control devices
• Industrial instrumentation and embedded control
• Devices requiring a compact round-knob input

Packaging and delivery

• Selling units: single item
• Single package size: 16 x 10 x 8 cm
• Single gross weight: 0.033 kg
• Supplier type: module
• Place of origin: Guangdong, China

Lead time

• 1 piece — 7 days
• 2–100 pieces — 25 days
• >100 pieces — to be negotiated

Images (overview)
Multiple product gallery images and detail views are provided: front, side and assembled views to assist evaluation and integration.
